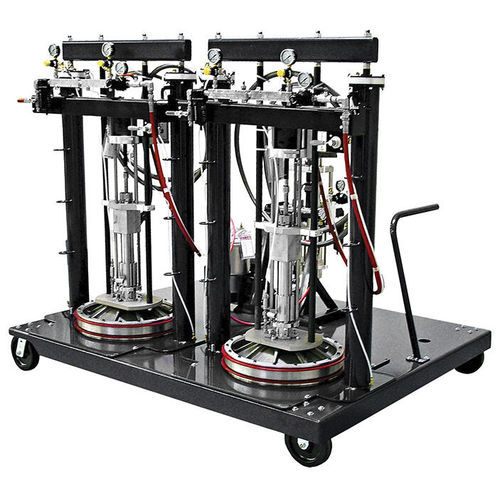

Polyurethane glue dispensing machine PATRIOT™ 1-1

siliconemethacrylate

Fixed 1:1 material ratio system allows manufacturers to dispense adhesive materials in various production spaces The 5-gallon model has self-leveling platforms and single power head keep material at the same level allowing proper dispensing of 1:1 mix ratio materials. Output capabilities of this system help users looking to process materials in both small and medium quantities. The 55-gallons model are ideal for manufacturers needing accurately mixed materials in large quantities. Two chop check fluid sections transfer material to one metering pump and then the applicator gun. The output is consistent and capable of enduring the most demanding production facilities. 5-GALLON Output Capabilities: approximately 1 lb/min – 4 lbs/min (.45kgs/min – 1.8 kgs/min) Air Consumption: 25-30 CFM (0.7 – 0.9 m^3/min) Mix Ratio: 1:1 by volume Available Pump Ratio: 23:1 Max Air Input Pressure: 100 psi (7 bar) 55-GALLON Output Capabilities: approximately 8 lbs/min – 32 lbs/min (3.6 kgs/min – 14.5 kgs/min) Air Consumption: 50 CFM (1.4 m^3/min) Mix Ratio: 1:1 by volume Available Pump Ratio: 15:1 Max Air Input Pressure: 100 psi (7 bar)
