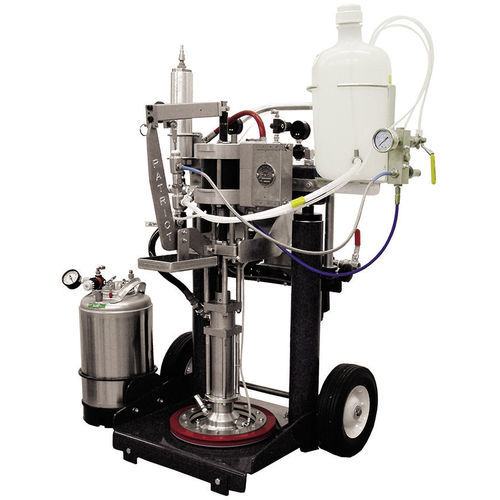

Adhesive mixing and metering unit 5-GALLON

Compact system that provides precise delivery of medium viscosity putty materials Our putty systems are tried and true. Providing a precise and steady flow of material, these systems are durable and easy to maintain to create increase production efficiency. Contact us today to learn more about our putty systems. 5-GALLON Simple and Reliable Dispensing: • Adjustable linkage drive allows users to set appropriate catalyst to material percentage limiting surrounding temperature concerns • Mix of materials is thorough and repeatable once proper ratio is set. Compact Design: • Provides users the option to use closer to production areas, limiting the need for longer hose sets and reducing waste • System footprint makes it ideal for smaller manufacturers with limited production space Specifications: • Output Capabilities: approximately 1 lb/min – 4 lbs/min (.45 kgs/min – 1.8 kgs/min • Air Consumption: 25-30 CFM (0.7 – 0.9 m^3/min) • Catalyst % Range: .75% – 2.5% by volume • Available Pump Ratio: 23:1 • Max Air Input Pressure: 100 psi (7 bar)
