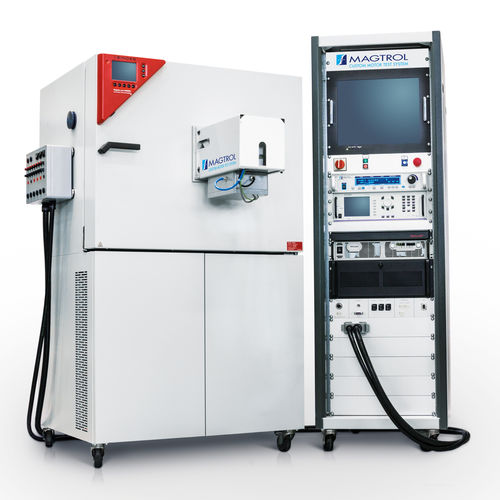

Test bench with climatic chamber Motor Test System in Climate Chamberfatiguetorquecalibration
Add to favorites
Compare this product
Characteristics
- Test type
- fatigue, torque, calibration, power, endurance, speed, multi-parameter, performance, durability, mechanical, electrical and mechanical, current, life cycle, performance load, voltage
- Operating mode
- automatic, manual, computer-controlled, motorized, continuous-motion, semi-automatic
- Test material
- vehicle, for motors, pump, for actuators, gearbox, brake, for electric screwdrivers, steering system, clutch, for alternator, for water pumps, for mechanical drive, for compressors, for starters, valve
- Sector
- for laboratory, for the automotive industry, industrial, for the aeronautical industry, for research and development, for the aerospace industry, for the electronics industry, for workshops
- Technology
- mechanical, electromechanical, digital, dynamic, magnetic, electric, electronic
- Configuration
- vertical, horizontal, compact, fixed, mobile, modular, portable, in-line
- Other characteristics
- rugged, precision, static, water-cooled, with climatic chamber, double, process, custom-made, routine test, high-stability, rotary, high-speed, air-cooled, biaxial
Description
- From components to turnkey system
- Customized motor test system up to 100 kW
- Dedicated motor test software
- Efficiency test according to IEC-60034
- Climate chamber tests from -40 to 150°C
- High speed application up to 100’000 rpm
- Many possibilities: torque, speed, power, efficiency, temperature, resistance, back FEM, cogging torque,...
Magtrol provides motor testing components to turnkey solutions for all your motor testing needs. Typical test benches include: dynamometers, 4-quadrant loading motors, tables, fixtures, control racks, power supplies, power analyzers, ohmmeters, and dedicated M-Test software. Other sensors can be integrated upon request.
To comply with the ever changing market requirements in the field of thermal testing, Magtrol is providing systems integrating a climate chamber to ensure real world simulations during testing. The system records motor performance in a temperature range from -40°C up to 150°C. Test sequences are executed at defined and stabilized temperature levels.
An integral component of any Magtrol Motor Test System, M-TEST software performs ramp, curve, manual, pass/fail (Go/No Go), coast locked rotor, running heating and temperature tests in a manner best suited to the overall efficiency of the test system. M-TEST has the flexibility to test a variety of motors in a multitude of configuration. The data generated from this user-friendly program can be stored, displayed and printed in tabular, graphical formats or universal data reports and is easily imported into a spreadsheet.
Need specific Motor Testing ? Do not hesitate to challenge us !
