Car brake tester C_MBT C 4.0 W250

roller

Product description
Digital roller brake tester for cars and vans designed for an axle load up to 4.0 t, fitted with 2 x 4 kW drive motors and a maximum track width of 2,500 mm. Suitable as a stand-alone tester or integrated into vehicle reception and diagnostic lanes for wider vehicles such as SUVs, off-roaders and vans where high throughput and increased loads are required.

Features

• Real slip monitoring with automatic start delay as standard
• Tire-saving automatic start monitoring to prevent tyre damage
• Automatic slip shut-off with pointer stop and automatic restart
• Automatic exit aid for comfortable egress of driven axles
• Automatic switch-off after vehicle exit
• Electronic, temperature-compensated (neutral) strain-gauge measurement system
• Internationally recognised TÜV report in accordance with VkBl 149/2021 (Germany)

Further product advantages

• Robust, compact construction
• Interface module integrated in the floor assembly
• Secure digital data transmission
• Modular control cabinet design

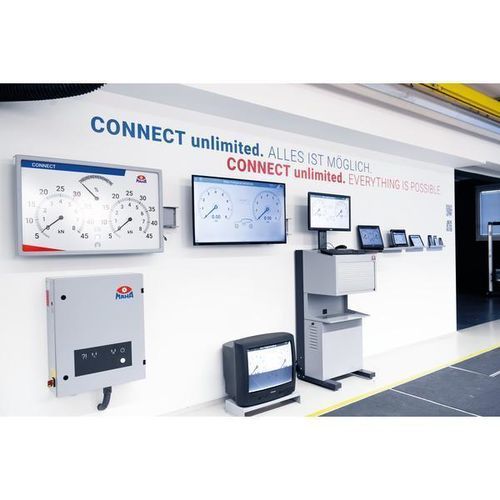

• Flexible display options
• Easy commissioning
• Simple maintenance and service
• Safe operation with optimised calibration and adjustment
• Integrated, expandable software and interfaces

Configuration

• Roller set model C W250
• Self-supporting, enclosed roller set (Compact)
• Continuously height-adjustable (245 - 300 mm)
• High-quality powder coating: anthracite grey, RAL 7016

Scope of delivery

• Control cabinet with integrated control unit
• Roller set C_MBT C 4.0 W250 with integrated interface module
• Pluggable cable harness 12 m

Technical data
Axle load (traversable): 4000 kg
Min. track: 780 mm
Max. track: 2500 mm
Drive power: 2 x 4 kW
Test speed: 5 km/h
Measured value display: 0-8 kN
Roller diameter: 202 mm
Roller axle distance: 400 mm
gG fuse: 25 A
Power supply: 3/N/PE 400 V 50 Hz
Roller set dimensions (L x W x H): 2644 x 680 x 280 mm

Technical specifications

• Application: cars and vans (suitable for wider vehicles such as SUVs, off-roaders and vans)
• Maximum traversable axle load: 4,000 kg
• Maximum track width: 2,500 mm
• Drive motors: two motors, total 2 x 4 kW
• Measured value range: up to 0-8 kN
• Roller diameter / axle distance: 202 mm / 400 mm
• Height adjustment of roller set: 245 - 300 mm
• Electrical supply: 3/N/PE 400 V 50 Hz; protection fuse: 25 A gG
• Roller set dimensions (L x W x H): 2644 x 680 x 280 mm
