Car brake tester C_MBT S 4.0 W220

roller

Product description
Digital roller brake tester for cars and vans up to 4.0 t axle load with 2 x 4 kW drive motors and a max. track width of 2,200 mm. Particularly suitable as a stand-alone tester or as part of reception and diagnostic test lanes for high-throughput workshops. Split design for installation in combination with a working pit.

Features

• Real slip monitoring and automatic start-up delay as standard
• Tyre-saving thanks to integrated automatic start-up monitoring
• Automatic slip switch-off with pointer stop and automatic restart
• Automatic aid for comfortable vehicle exit with driven axles
• Automatic switch-off after vehicle exit
• Electronic, temperature-compensated (neutral) strain gauge system
• Internationally recognised TÜV report in accordance with VkBl 149/2021 (Germany)

Further product advantages

• Sturdy, solid design
• Interface module integrated in the floor assembly
• Secure and digital data transmission
• Modular control box setup

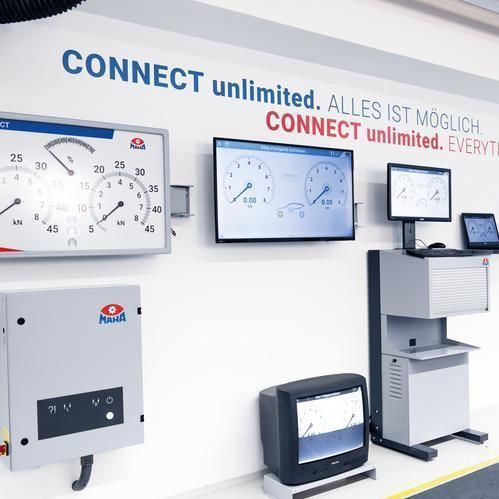

• Multiple flexible display options
• Simple commissioning
• Easy maintenance and service
• Safe operation
• Optimised calibration and adjustment
• Integrated and expandable software and/or interfaces

Configuration

• Roller set model S W220
• Self-supporting, divided roller set (Split)
• Continuously height-adjustable (245 - 300 mm)
• High-quality powder coating: anthracite grey, RAL 7016

Scope of delivery

• Control box with integrated control unit
• Roller set C_MBT S 4.0 W220 with integrated interface module
• Pluggable cable harness 12 m

Characteristics / Technical specifications

• Axle load (drive-over): 4000 kg
• Min. track: 780 mm
• Max. track: 2200 mm
• Drive power: 2 x 4 kW
• Test speed: 5 km/h
• Measured value display: 0 - 8 kN
• Roller length: 730 mm
• Roller diameter: 202 mm
• Roller axle distance: 400 mm
• gG fuse: 25 A
• Power supply: 3/N/PE 400 V 50 Hz
• Dimensions of roller set (L x W x H): 1420 x 680 x 280 mm
