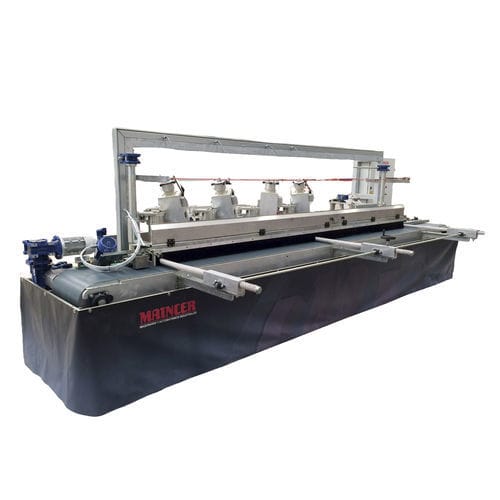

2-axis milling machine MRB

horizontalservo-drivenfor glass

Product overview
The MRB skirting board and step milling machine is engineered for automatic thickness milling on ceramic and other construction materials to produce skirting boards, step pieces, rounded/bevelled edges and similar profiles. The unit integrates a conveyor belt with a pressing bar to ensure stable clamping and consistent finishing. Diamond tooling can be swapped without replacing the motor, enabling different attack angles and surface results.

Operation
The milling cycle runs automatically on a conveyor belt equipped with a pressing bar that guarantees correct piece clamping. Tool changes are quick and the machine accepts multiple diamond grinding tool types (cutting discs, tangential wheels, profile wheels, lamellar brushes) to obtain varied finishes and shapes.

Materials

• Ceramic and porcelain
• Natural stone (marble, granite)
• Extruded tile
• Concrete and brick
• Glass/resin composites

Available formats / shapes
The MRB produces multiple skirting and step profiles, for example:

• Bullnose (½ circle) skirting
• Half bullnose with bevel
• 45° mitered skirting with bevel
• 30° mitered skirting with bevel
• Bevelled skirting and step edges

Key features and innovation

• Automatic thickness milling with conveyor belt and pressing bar for reliable clamping
• Compatibility with various diamond tools without motor change
• Single-guide piece guiding system along the entire belt
• Stainless steel water recovery tray for waste management
• Touchscreen for easy parameter adjustment
• Hot-dip galvanized frame chassis for long-term durability
• Part of the Advanced Range with configurable options

Optionals

• Servomotorized toothed side belt synchronized with the conveyor for heading/milling short sides of rectangular pieces
• Dedicated motor for milling anti-slip grooves on steps

Gallery & multimedia
Photo and video gallery available showing the machine, produced profiles and optional equipment.

Technical specifications

• Model: MRB
• Brand: MAINCER
• Function: Automatic thickness milling to produce skirting boards, step pieces and rounded/bevelled edges
• Automatic feeding: Conveyor belt with pressing bar for piece clamping
• Tool compatibility: Cutting discs, tangential wheels, profile grinding wheels, lamellar brushes
• Frame: Hot-dip galvanized chassis
• Water management: Stainless steel water recovery tray
• Controls: Touchscreen parameter adjustment
• Processed materials: Ceramic, porcelain, stone, marble, granite, extruded tile, concrete, brick, glass/resin composites
• Optionals: Servomotorized side belt; motor for anti-slip grooves
