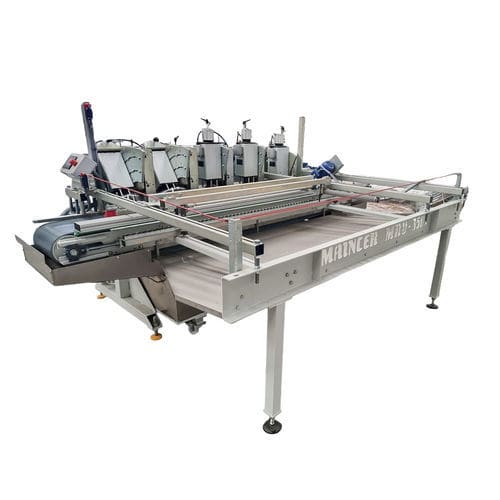

Glass edging machine MRV-350 series

electronic

Product overview
Skirting board and mitering machine MRV-350 (variants MRV-350/5+1, MRV-350/7+1) is a milling machine for processing construction materials. Intended for distributors and machining workshops, it performs milling, profiling and miter cuts on skirting boards and step treads according to tool configuration and options.

Applications and materials

• Cut, profile or mill pieces in ceramic and porcelanico
• Stone
• Marble
• Granite
• Resin composites
• Glass composites
• Extruded tiles

Versions (standard)

• MRV-350/5+1 – short support: 5 milling motors + 1 opposite micro-bevelling motor; for piece widths up to 600 mm.
• MRV-350/5+1 – long support: same motor configuration; for piece widths up to 1200 mm.
• MRV-350/7+1 – short support: 7 milling motors + 1 opposite micro-bevelling motor; for piece widths up to 600 mm.
• MRV-350/7+1 – long support: same configuration; for piece widths up to 1200 mm.

Formats and finished profiles achievable

• Skirting board with microbevel
• Bevelled skirting board
• Skirting board with miter
• Bullnose / 1/2 circle skirting board
• Half bullnose with or without bevels
• Bullnose / 1/2 circle step tread
• 1/4 circle step tread
• Simple step tread
• Complete step tread with anti-skid slots

Optionals

• Servomotorized lateral toothed belt synchronized with the conveyor for "heading" operations (milling short sides of rectangular pieces)
• Cleaning kit (spray nozzles at machine exit to wash machined pieces)
• Multi-speed kit allowing high (~90 Hz) or low (~10 Hz) speed operation without torque loss

How it helps production

• Solution for distributors and machining workshops to optimize skirting board and step production
• Configurable short or long supports according to production needs
• Parameter adjustment via touch screen for straightforward setup and operation

Technical specifications

• Chassis: hot-dip galvanised steel; short or long support
• Conveyor belt: 6 mm belt, driven by double geared motor and controlled by electronic frequency inverter
• Control: parameter adjustment via touchscreen
• Motor supports: steel supports with precise manual adjustment on protected chrome-plated bars
• Milling motors: high-performance 2.3 kW motors; diamond tool position adjustable by top crown with decimal precision
• Standard configurations: 5 or 7 milling motors plus one opposite micro-bevelling motor
• Materials processed: ceramic, porcelanico, stone, marble, granite, resin and glass composites, extruded tiles
• Max piece width: up to 600 mm (short) or up to 1200 mm (long) depending on configuration
