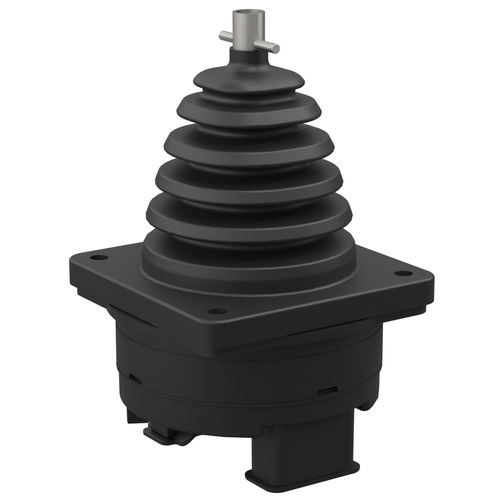

Hall effect joystick base MO 391 H1X

IP67analogCAN

MO 391 H1X Power / Analog Base Technology: Contactless Hall measuring principle Output: Double output per axis, full redundant Output Type: Analog, PWM, Digital options Output Voltage: Analog: 0-5V / 0-10V / 4-20mA PWM: 5V / 0-32V / 8-32V 100...1kHz Supply Voltage: 5V or 8(12)-32V Protective Rating: IP67 Lever Op. Angle: ± 20° Lever: Self centering Connector: Deutsch 8 pins Operating Temp.: -40°C ... +85°C Lifetime at full stroke: Up to 5 million Other Specification: Two centering spring forces 1000N from 100mm rotation point, 500N from z axis 2 Axis full square, 2 axis cross, single axis actuation Options: Customized output signal program
