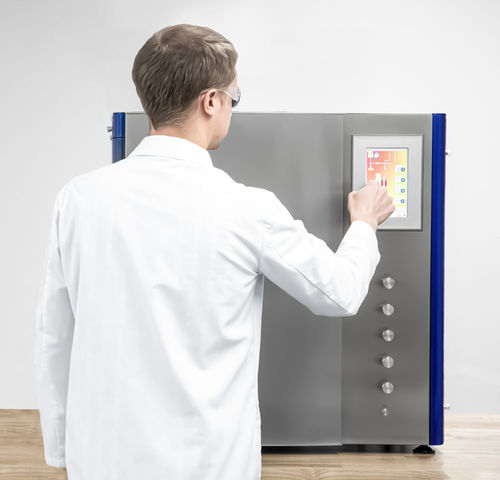

Gas analyzer Micromeritics BTA

laboratoryresistanceflow

Compact, versatile, high-performance selective adsorption Superior design minimizes dead volume & delivers accurate, experimental results Configurable with up to 6 precision mass flow controllers and 2 vapor sources Patented high-performance blending valves Sample activation up to 1050 ℃ Thermostated environmental chamber provides uniform temperature control, even when using vapors Easily connects to commercial Mass Spectrometer & Fourier Transform Infrared Analyzer (FTIR) Secure door lock system for enhanced operator safety The Micromeritics BreakThrough Analyzer is a flexible gas delivery and management system for the precise characterization of adsorbent performance under process-relevant conditions. It delivers reliable adsorption data for gas/vapor mixtures using a flow-through system. A safe and highly optimized device for collecting both transient and equilibrium adsorption data for multi-component systems. The BreakThrough Analyzer can be configured with up to six precision mass flow controllers and patented high-performance blending valves, delivering unparalleled flexibility in experimental design. The superior gas-delivery design ensures the precise control of both composition and flow rate, while minimizing dead volume. The high-quality, stainless-steel column can hold 0.05 to 2.5 grams of adsorbent. Automated sample activation up to 1050 °C is possible with the precise, rugged, and reliable resistance furnace. Operating pressures are controlled from atmospheric to 30 bar via a servo-positioned controlled valve. The thermostated environmental
