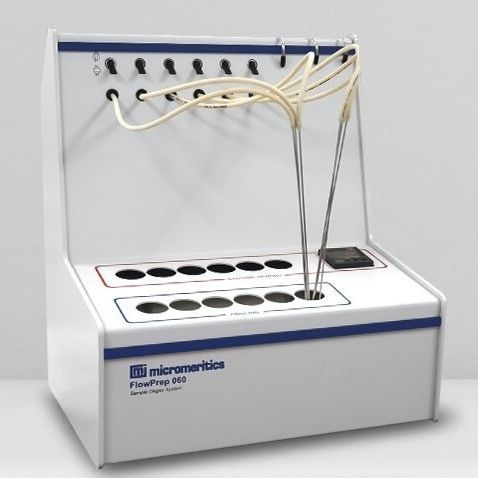

Automatic sample preparation system Micromeritics FlowPrep

for the laboratory

The Micromeritics FlowPrep lets you choose the most suitable gas, temperature, and flow rate for your application and sample material. The Micromeritics FlowPrep applies a combination of heat and a stream of inert gas to your sample. The heat causes contaminants to desorb from the surface, and the stream of inert gas sweeps them out of the sample tube. The FlowPrep lets you choose the temperature, gas, and flow rate best suited for your sample material and application. Needle valves allow you to introduce the flowing gas slowly to prevent fluidization of samples. Specification Sample tubes - Up to 3.0-cm (1.18-in.) OD Heating block - Temperature: 10 ºC above ambient to 400 ºC Temperature Accuracy: ± 10 ºC Power - Voltage: 100, 120, 220, 240 VAC ± 10% Power: 250 VA maximum Frequency: 50/60 Hz Environment - Temperature: 10 to 35 ºC operating; 0 to50 ºC non-operating Humidity: 45 to 80% relative, non-condensing Gas Consumption - Helium, nitrogen, argon, or any other pure gas that does not adsorb at room temperature Flow rate range - Up to 50 cm3/min. No vacuum required Sample capacity - 6 heating stations and 6 cooling stations Dimensions - Height: 45 cm (16.93 in.) Width: 36 cm (14.17 in.) Depth: 30 cm (11.81 in.) Weight: 8.6 kg (19 lbs)
