Tugger cart CHAR300SP-3507-1

transportwith swivel castersindustrial

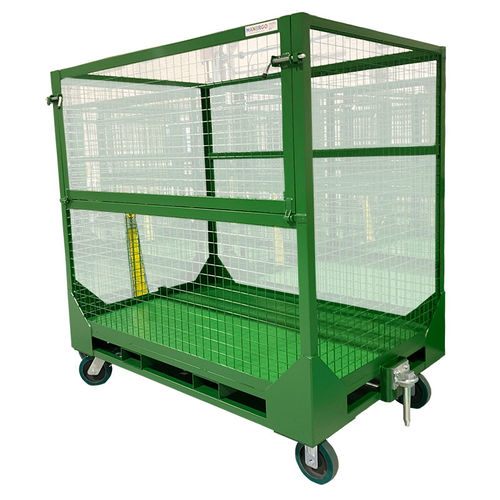

This towable wire cart, reference CHAR300SP-3507-1, allows the transport of all types of products. Equipped with drawbar and hitch, it is easy to compose a train of trailers to tow in safety. Its reinforced wheels allow a good road holding up to 12 km/h. These carts are equipped with 2 half-grill doors allowing an easier access to the interior of the cart. This towable cart is made to measure on the precise request of a railway industrialist. THE CHARACTERISTICS OF THE TOWABLE WIRE CART WITH DRAWBAR : •Volume : 3 000 L ; •Maximum load (CMU): 1,200 kg ; •Overall length: 2784 mm ; •Overall width: 1258 mm ; •Overall height: 1893 mm ; •Useful length: 1770 mm ; •Useful width: 1170 mm ; •Useful height: 1475 mm ; •Sheath size : 174 x 74 mm ; •Centre distance of sleeves: 580 mm; OPTIONS : •2 fixed wheels and 2 swivel wheels with brakes D200 with polyurethane tyres; •Handling sheaths; •Mesh on 4 sides 50 x 50 mm; •Drawbar and hook; •1 half door pivoting on one large side with locks.
