Transflective display MT050WVRPA056-01-C045A-KLCD/TFTcapacitive touch screenIPS
Add to favorites
Compare this product
Characteristics
- Type
- LCD/TFT, IPS, transflective, capacitive touch screen
- Format
- 800 x 480
- Screen size
- 5"
- Applications
- remote control, industrial, for medical equipment, humidity measurement, current measurement, remote, temperature measurement, for load cells, for weighing devices, for metrology, for flow measurement, time date temperature, for the environmental industry, for transportation, for vehicles, for the energy sector
- Other characteristics
- RGB, sunlight-readable
Description

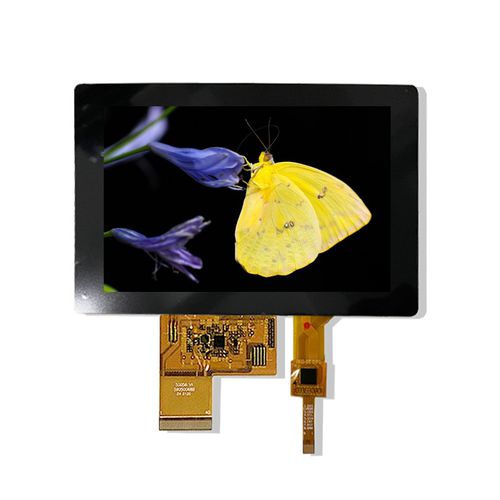

5.0″ 800*480 IPS transflective TFT LCD display RGB interface sunlight readable
Part No. :MT050WVRPA056-01-C045A-K
Resolution:800*480dots
Interface:16/18/24RGB
Controller IC:HX8264+HX8664
Outline Dimension:132.72*87.8*4.92mm
Active Area:108.0*64.8mm
Brightness:250cd/M2
Viewing Angle: 6 O’ CLOCK
LCD Type: Normally white
