TFT LCD display MT035QVRMA223-K
transflective240 x 3203.5"

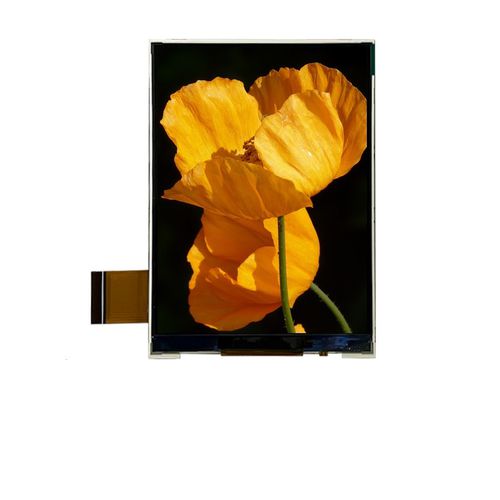

TFT LCD display - MT035QVRMA223-K - Mango Display Technology Co. Ltd - transflective / 240 x 320 / 3.5"
TFT LCD display - MT035QVRMA223-K - Mango Display Technology Co. Ltd - transflective / 240 x 320 / 3.5"
TFT LCD display - MT035QVRMA223-K - Mango Display Technology Co. Ltd - transflective / 240 x 320 / 3.5" - image - 2
Add to favorites
Compare this product

Characteristics

Screen type
TFT LCD
Type
transflective
Format
240 x 320
Screen size
3.5"
Applications
control, industrial, for the energy sector, information, current measurement, remote, temperature measurement, for logistics, for flow measurement, for remote control, for metrology, for gas stations, time date temperature, for medical equipment, for the environmental industry, for transportation, for weighing devices, for vehicles, humidity measurement
Interface
RGB, MCU
Configuration/mounting
outdoor
Other characteristics
sunlight-readable

Description

3.5″ 240*320 transflective TFT LCD display MCU/RGB interface sunlight readable Part No. :MT035QVRMA223-K Resolution:240*320dots Interface:MCU/RGB IC or Equivalent:ILI9341 Outline Dimension:60*82.9*2.78mm Active Area:53.57*71.42mm Brightness:120cd/M2 Viewing Angle: 6 o clock LCD Type: Normally white
