Oil filter

cartridgewith cartridgefor engine

Overview
Oil filters remove solid particles from the engine oil that accumulate in the lubrication circuit due to contamination and wear. With high particle filtration and dirt-holding capacity, oil filters from MANN+HUMMEL provide optimum engine protection and support long service intervals. They contribute to durable and economical vehicle operation. Engine oil filter systems from MANN+HUMMEL are available as spin-on oil filters and as filter modules. Optionally, additional functions such as oil cooling and oil pressure and temperature measurement can be integrated into customised oil filter modules for passenger-car engines.

Product benefits

• High system efficiency through elevated dirt-holding capacity with minimal pressure loss
• Available with a range of environmentally friendly high-performance MULTIGRADE filter media
• Fast, easy and clean maintenance

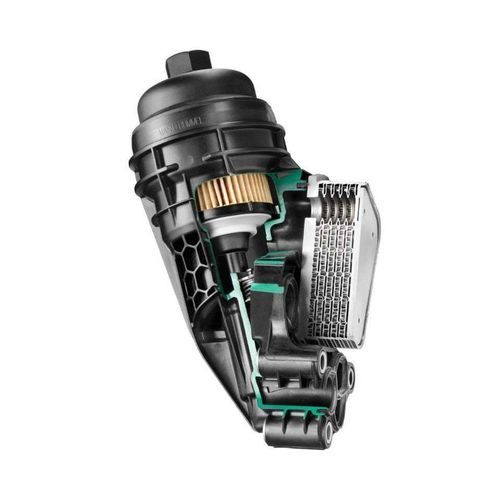

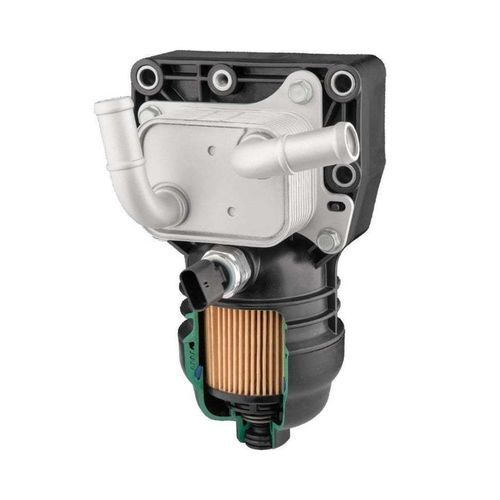

Oil filter modules

• Robust designs to meet demanding technical requirements
• Integration of multiple functions to meet individual customer specifications, e.g. pressure and temperature control

Spin-on oil filter

• Standardised design for straightforward installation
• Wide global availability

Technical features (table)
Technical features | Oil filters
Volume flow range | 25 to 70 L/min
Separation efficiency | 50% at 7–20 µm
Service interval | 2 years and up to 50,000 km
Operating temperature | -40 to 150 °C

Technical specifications

• Volume flow range: 25 to 70 L/min
• Separation efficiency: 50% at 7–20 µm
• Service interval: 2 years and up to 50,000 km
• Operating temperature: -40 to 150 °C
