Air vent VentPlus Pro

gasautomatic

Description
High-voltage battery systems for electric mobility require protection against water and dust ingress while allowing continuous pressure equalization. In the event of a rapid internal pressure rise (for example caused by thermal runaway), the venting unit provides controlled emergency venting to reduce pressure and protect the pack. The VentPlus product family offers solutions based on bursting membranes or reclosable valves, enabling selection according to packaging, safety and serviceability requirements.

Product benefits

• Protects the high-voltage battery system under all operating conditions
• Continuous pressure equalization to compensate temperature or altitude variations
• Controlled emergency venting at defined overpressure to reduce internal pressure
• Water- and dust-tight construction to withstand external water accumulation and high-pressure cleaning

Our market product solutions

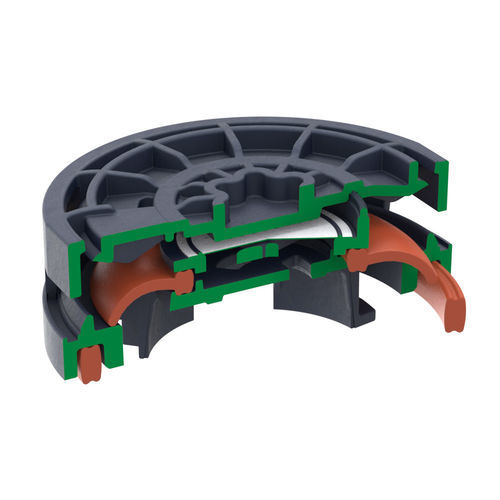

VentPlus Pro

• Compact design for battery packs with limited free space
• Low opening pressure with high degassing flow rate
• Installation aid with external Torx socket E24
• Protection modes include:
  • Pressure compensation during normal operation
  • Reclosing umbrella valve to compensate small pressure increases
  • Emergency degassing under thermal runaway conditions

VentPlus (modular system)

• Modular VentPlus system with many combinations to meet different requirements
• Flexible mounting options for integration into various pack designs
• Sealing materials selectable for different chemical resistance
• Membrane grid available in honeycomb or slot designs
• Ready for series production for global automotive applications
• Optional hot-gas particulate filter to meet evolving safety and regulatory requirements

Video
A product video is available demonstrating the venting unit solutions and operating principles.

Technical specifications

• Function: pressure equalization and emergency venting for high-voltage battery systems
• Technologies: bursting membrane and reclosable valve options
• Emergency venting: controlled opening at defined overpressure to reduce internal pressure
• Continuous ventilation: pressure compensation for temperature and altitude differences
• Ingress protection: water- and dust-tight design suitable for exposure and high-pressure cleaning
• Design variants: VentPlus Pro (compact, low opening pressure, high degassing flow) and VentPlus modular system (multiple combinations)
• Mounting: flexible mounting options; installation aid with external Torx socket E24 (VentPlus Pro)
• Sealing: selectable materials with varying chemical resistance
• Membrane grid options: honeycomb or slot design
• Optional features: hot-gas particulate filter for enhanced safety
• Series-production readiness: designed for global automotive mass production
