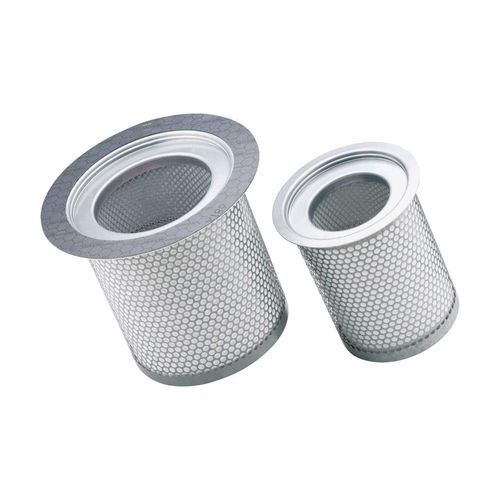

Oil mist separator AOS XTcoalescingfor air compressorshigh-efficiency
Add to favorites
Compare this product
Characteristics
- Separated substance
- oil mist
- Technology
- coalescing
- Application domain
- for air compressors
- Other characteristics
- high-efficiency, compact
- Flow
Max.: 4,560 m³/h
(161,034.88 ft³/h)Min.: 48 m³/h
(1,695.104 ft³/h)
Description
Product description
The AOS XT air/oil separator is designed for oil-cooled screw compressors. It maintains separation efficiency across a wide range of operating conditions and is compatible with variable speed (VSD) compressors. Improved separation reduces oil carryover and lowers compressor operating costs through reduced oil consumption.
Product benefits
Technical features
The AOS XT air/oil separator is designed for oil-cooled screw compressors. It maintains separation efficiency across a wide range of operating conditions and is compatible with variable speed (VSD) compressors. Improved separation reduces oil carryover and lowers compressor operating costs through reduced oil consumption.
Product benefits
- Stable separation efficiency across varying load and temperature conditions
- Reduction of oil losses from the compressed air circuit
- High separation efficiency over the service lifetime
- Reduces residual oil content by 30% at equivalent pressure drop
- Compact design with improved power-to-size ratio
Technical features
- Free Air Delivered (FAD): 0.8 to 76 m³/min
- Oil carry over (OCO): < 2 mg/m³
- Initial pressure drop: 0.3 Bar
- Operating temperature: < 120 °C
- Copy Protection: Yes
- Backwards compatible: Yes
Catalogs
No catalogs are available for this product.
See all of MANN+HUMMEL Filters‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
