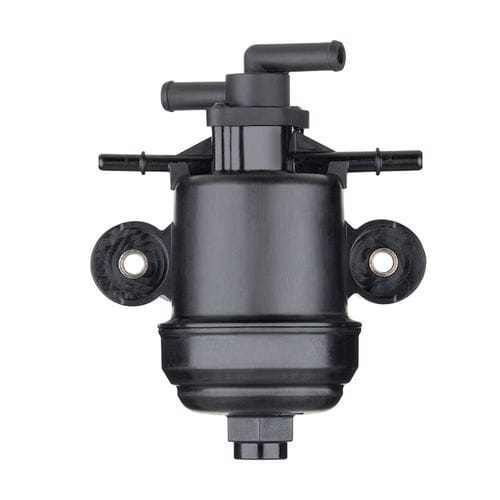

Particulate filter unit

pressuresuctionmembrane

Product description
The urea filter module from MANN+HUMMEL protects SCR systems by removing dirt particles from the AdBlue urea solution. It is designed for integration on either the suction or pressure side of the SCR system and allows the incorporation of additional functions in a compact module. The design targets heavy-duty applications such as construction and agricultural machinery where continuous performance is required.

Product benefits

• Protects SCR components from particle-induced wear
• Reduces machine downtime and increases operational availability
• Extends service intervals
• Fast, easy and clean maintenance
• Enables suction-side application via patented degassing membrane
• Provides freeze stability through patented compensation elements and optional heating (electrical or hydraulic)
• Flexible integration into existing SCR systems

Technical features
Volume flow range: Up to 120 l/h
Operating temperature: -5 °C to +85 °C
Installation: Suction- or pressure-side integration in SCR system
Filter media: Cellulose or synthetic media
Applications: Construction & agricultural vehicles, heavy duty, passenger cars and industrial engines

High performance details

• Compact module engineered for high workloads in construction and agricultural machines
• Patented degassing membrane enabling reliable suction-side operation
• Patented compensation elements ensuring freezing stability
• Optional heating functions (electrical / hydraulic) for temperature management

Structure of the urea filter module (key components)

• 1 — Coolant inlet
• 2 — Urea outlet
• 3 — Venting membrane
• 4 — Hydraulic heater
• 5 — Compensation element
• 6 — Coolant inlet (second)
• 7 — Urea inlet
• 8 — Compensation element (second)
• 9 — Filter element

Further information
All-round protection for the urea system: in construction and agricultural machines, urea filters must withstand high workloads and provide reliable operation. MANN+HUMMEL developed this compact urea filter module to meet these requirements while allowing easy integration and serviceability.

Specifications / technical data

• Volume flow range: Up to 120 l/h
• Operating temperature: -5 °C to +85 °C
• Installation: Suction- or pressure-side integration in SCR system
• Filter media: Cellulose or synthetic media
• Applications: Construction & agricultural vehicles, heavy duty, passenger cars and industrial engines
• Optional heating: Electrical or hydraulic
• Suction-side operation enabled by degassing membrane
• Freezing stability via compensation elements
