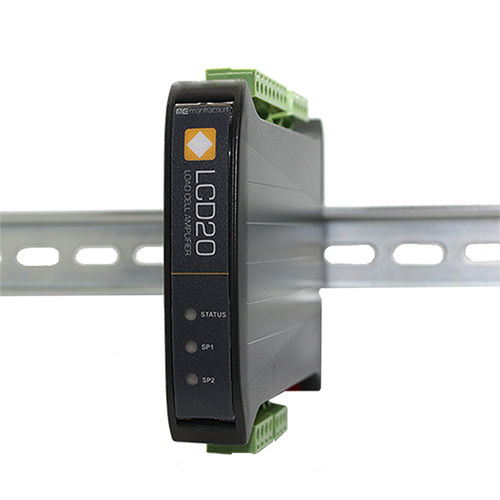

Signal amplifier LCD20
currentvoltageacquisition

signal amplifier
signal amplifier
signal amplifier
signal amplifier
signal amplifier
Add to favorites
Compare this product


Characteristics

Type
signal, voltage, current
Secondary function
instrumentation, acquisition
Other characteristics
digital, DC, programmable, isolated, DIN rail, compact, for load cells, for strain gauges, pressure
Voltage

Max.: 10 V

Min.: 0 V

Current

Max.: 20 mA

Min.: 4 mA

Description

Our intelligent strain gauge bridge amplifier is a compact, stackable microprocessor based unit specifically designed to control and monitor process applications. Flexible connection to most load cells, pressure or strain gauges over a wide range of sensitivities. The unit provides isolated current 4-20mA and voltage 0-10V analogue outputs and two digital inputs. Two set point relays can be configured to set thresholds such as net, gross, peak and valley. Powered from a wide ranging DC supply, the DIN rail amplifier is supplied with 2 part screw connectors for ease of installation. Suitable for strain gauges and other ratio-metric sensors and will support 6 wire input to compensate for barrier and cable losses. Factory calibrated to mV/V and supporting 10 point user calibration to desired engineering units. Configuration options via handheld programmer or PC Toolkit software. The analogue outputs and relays interface to existing acquisition and control systems making this unit an ideal partner for any integrated instrumentation system.
