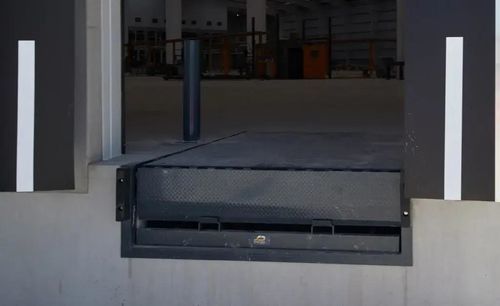

Truck loading ramp

fixedstationaryhydraulically-operated

Description
Loading dock ramps bridge the gaps and height differences between docks and vehicle bodies during loading and unloading operations. The structure provides stability for handling heavy goods. Ramps are designed to prevent slipping with an anti-slip chequered plate base and include a foldable lip to facilitate truck access. Operation is via a hydraulic system controlled by an electronic unit. Possibility of manufacture as IN A BOX: premounted frame and installation as a single piece. Standard or custom manufacturing.

Manufacturing and installation options

• Standard or custom manufacturing.
• IN A BOX option: premounted frame and single-piece installation.
• Optional: ramp–truck body communication system to improve coordination and operational safety.

Main features (information present on the product sheet)

• Base: anti-slip chequered plate to prevent slipping.
• Foldable lip to facilitate access to trucks.
• Hydraulic system with electronic control.
• Possibility of custom manufacture and integrated delivery/installation (IN A BOX).
• Finishes / color: available, example RAL 9005 (optional painting).

Observations found on the page

• The introduction indicates the structure can withstand up to 15 tonnes in dynamic loads and up to 18 tonnes in static loads.
• The specifications section shows concrete technical values (see final technical specifications section).

Specifications / technical data

• Static load capacity: 9000 kg.
• Dynamic load capacity: 6000 kg.
• Hydraulic unit power: 1.1 kW (1.5 HP).
• Service pressure: 170 bar.
• Flow rate: 2.2 cm³/s.
• Anti-slip base: chequered plate.
• Ramp–truck body communication: optional system for operational connection/coordination.
• Manufacture: standard or custom; possible IN A BOX ramp with premounted frame and single-piece installation.
