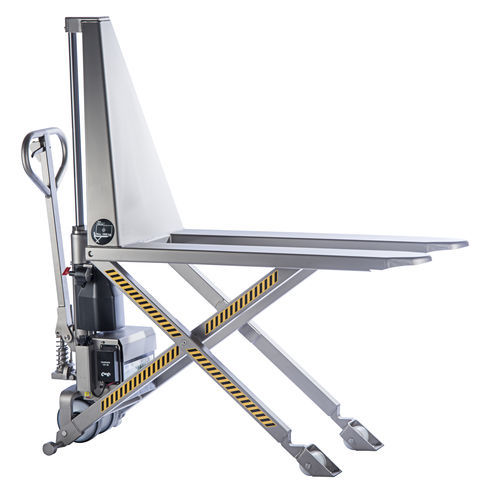

High-lift pallet truck

electric12 Vlift

made of ultra-resistant 304 stainless steel, with a matt micro-beaded finish. Stainless steel 316 on request. Frame - drawbar - cylinder rod - pins - nuts - pins - grease nipples - bearings = ALL STAINLESS STEEL Crossbars: hot-dip galvanised steel. Zinc-plated hydraulic pump with cold galvanised paint. This small and handy high lift pallet truck is a practical means of moving and raising pallets to a predetermined position. The lift is controlled electrically by a button on the tiller and manually by a lever. Can also be raised manually in case of battery failure. Equipped with an emergency stop with key switch. Load level indicator visible and accessible by coloured diodes. Hydraulic cylinder with 1 piston to avoid multiple leaks. Covered fork tips to prevent splashing. Equipped with shoes that lock the unit to the ground once the load is up. Two side stabilisers at the rear for maximum safety at 400mm lift and above, which are fully supported on the ground and prevent the unit from rolling. Integrated electronic loader. Delivered assembled, with user manual and CE certificate in French. 100% EUROPEAN PRODUCTION. 2 year warranty (excluding parts subject to wear and tear). Technical data Rear wheel diameter : 180 mm Rear wheel type : PU/Nylon tape Front wheel diam : 82 mm Distance centre of f : 600 mm Total length : 1655 mm Total width: 560 mm Tiller height in straight position: 1230 mm Height of carriage: 938 mm Distance between tiller and fork face: 455 mm Radius rotation angle: 1540 mm Lift speed loaded/unloaded: 0.05/0.08 m/s Lowering speed : Manual progressive Electric motor: 12V/0.8 KW Battery weight: 20 Kg Front wheel type : Nylon
