Wheel with solid tire BVS/MPA/160/K – 550 kgaluminumsheetplate
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- aluminum
- Applications
- plate , sheet
- Other characteristics
- elastic
- Load capacity
550 kg
(1,213 lb)- Diameter
160 mm
(6.3 in)- Tread width
50 mm
(1.97 in)
Description

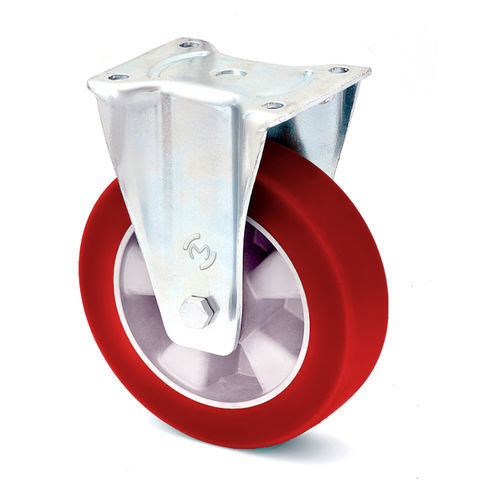

"Fixed Wheel Set BVS/MPA/160/K – Aluminum‑Polyurethane wheel – 550 kg
Technical Specifications:
Bearings: ball bearings
Mounting plate size: 135×110 mm
Mounting hole spacing: 105×80 mm
Total height: 215 mm
Wheel with “Marbathane&Soft”® tread:
Molded polyurethane bonded to the aluminum hub using special adhesives; hardness 75° ShA; thick tread made of special elastic polyurethane providing high user comfort on all types of floors; non‑marking and floor‑friendly; excellent resistance to abrasion, cuts and tearing; quiet running with low rolling resistance.
Housing: pressed from thick zinc‑coated steel sheet. Wheel axle bolted.
Mounting Type: Plate mount
"
