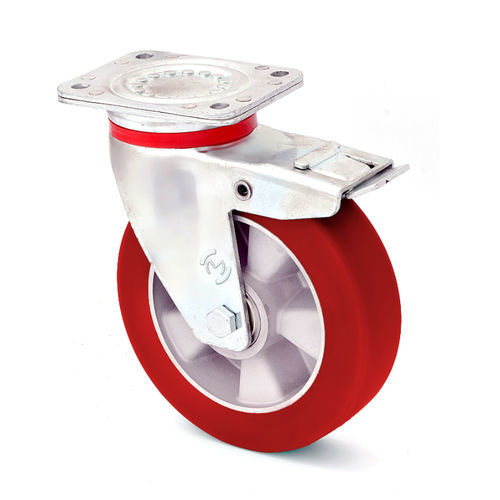

Wheel with solid tire LVS/MPA/125/54/KDS-N – 450 kg
aluminumpolyurethaneplate

Wheel with solid tire - LVS/MPA/125/54/KDS-N – 450 kg - MARBA - aluminum / polyurethane / plate
Wheel with solid tire - LVS/MPA/125/54/KDS-N – 450 kg - MARBA - aluminum / polyurethane / plate
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
aluminum
Tread material
polyurethane
Applications
plate
Other characteristics
elastic, reinforced
Load capacity

450 kg
(992 lb)

Diameter

125 mm
(4.92 in)

Tread width

50 mm
(1.97 in)

Description

"Swivel Wheel Set LVS/MPA/125/54/KDS‑N – Aluminum‑Polyurethane wheel – 450 kg – with brake Technical Specifications: Bearings: ball bearings Mounting plate size: 135×110 mm Mounting hole spacing: 105×80 mm Total height: 178 mm Wheel with “Marbathane&Soft”® tread: Molded polyurethane bonded to the aluminum hub using special adhesives; hardness 75° ShA; thick tread made of special elastic polyurethane providing high user comfort on all types of floors; non‑marking and floor‑friendly; excellent resistance to abrasion, cuts and tearing; quiet running with low rolling resistance. Housing: pressed from thick zinc‑coated steel sheet; swivel head with double ball bearings in a reinforced head; specially sealed. Wheel axle bolted. Mounting Type: Plate mount "
