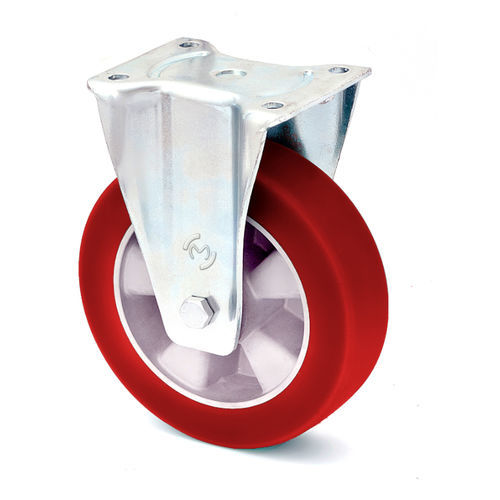

Wheel with solid tire BVS/MPA/250/K – 800 kg
aluminumpolyurethanesheet

Wheel with solid tire - BVS/MPA/250/K – 800 kg - MARBA - aluminum / polyurethane / sheet
Wheel with solid tire - BVS/MPA/250/K – 800 kg - MARBA - aluminum / polyurethane / sheet
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
aluminum
Tread material
polyurethane
Applications
plate , sheet
Other characteristics
elastic
Load capacity

800 kg
(1,764 lb)

Diameter

250 mm
(9.84 in)

Tread width

50 mm
(1.97 in)

Description

"Fixed Wheel Set BVS/MPA/250/K – Aluminum‑Polyurethane wheel – 800 kg Technical Specifications: Bearings: ball bearings Mounting plate size: 135×110 mm Mounting hole spacing: 105×80 mm Total height: 245 mm Wheel with “Marbathane&Soft”® tread: Molded polyurethane bonded to the aluminum hub using special adhesives; hardness 75° ShA; thick tread made of special elastic polyurethane providing high user comfort on all types of floors; non‑marking and floor‑friendly; excellent resistance to abrasion, cuts and tearing; quiet running with low rolling resistance. Housing: pressed from thick zinc‑coated steel sheet. Wheel axle bolted. Mounting Type: Plate mount "
