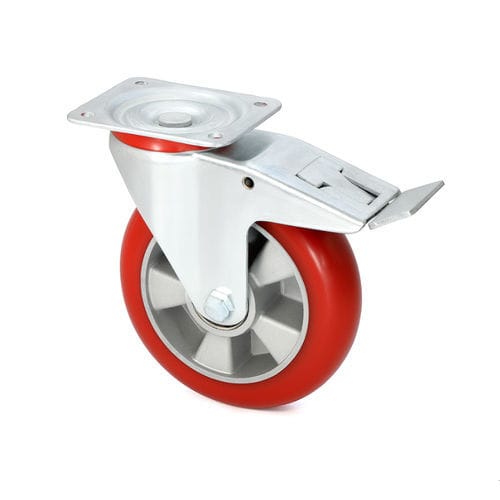

Wheel with solid tire LU/MPAE/200/KDS-N – 600 Kgaluminumball bearingpolyurethane
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- aluminum
- Hub type
- ball bearing
- Tread material
- polyurethane
- Applications
- plate
- Load capacity
600 kg
(1,323 lb)- Diameter
200 mm
(7.87 in)- Tread width
50 mm
(1.97 in)
Description
"Swivel Wheel Set LU/MPAE/200/KDS-N – Aluminum-Polyurethane Wheel with Brake – 600 kg
Technical parameters:
· Bearings: ball bearings
· Plate size: 135x110 mm
· Mounting hole spacing: 105x80 mm
· Total height: 245 mm
Wheel with “Marbathane&Soft”® tread:
Durable bond of cast polyurethane with the aluminum wheel hub using special adhesives. Hardness 75° ShA, thick tread made of special elastic polyurethane ensuring high comfort of use on all types of floors, non-marking and non-staining, excellent resistance to abrasion, cuts, and tearing. Quiet running with very low rolling resistance.
Ergonomic wheels.
Housing: stamped from thick zinc-coated steel sheet, swivel head with reinforced construction and double ball bearing, sealed. Wheel axle bolted.
Mounting type: top plate.
"
