Wheel with solid tire BU/MPAE/160/K –550 Kgaluminumsheetplate
Add to favorites
Compare this product
Characteristics
- Type
- with solid tire
- Hub material
- aluminum
- Applications
- plate , sheet
- Load capacity
550 kg
(1,213 lb)- Diameter
160 mm
(6.3 in)- Tread width
50 mm
(1.97 in)
Description

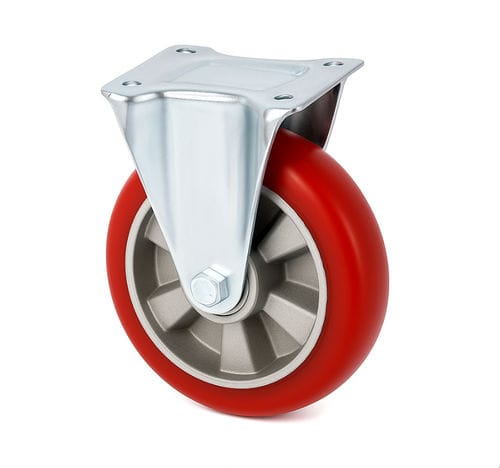

"Fixed Wheel Set BU/MPAE/160/K – Aluminum-Polyurethane Wheel – 550 kg
Technical parameters:
· Bearings: ball bearings
· Plate size: 135x110 mm
· Mounting hole spacing: 105x80 mm
· Total height: 200 mm
Wheel with “Marbathane&Soft”® tread:
Durable bond of cast polyurethane with the aluminum wheel hub using special adhesives. Hardness 75° ShA, thick tread made of special elastic polyurethane ensuring high comfort of use on all types of floors, non-marking and non-staining, excellent resistance to abrasion, cuts, and tearing. Quiet running with very low rolling resistance.
Ergonomic wheels.
Housing: stamped from thick zinc-coated steel sheet. Wheel axle bolted.
Mounting type: top plate.
"
Catalogs
No catalogs are available for this product.
See all of MARBA‘s catalogsOther MARBA products
Industrial castors LU/MPAE aluminium polyurethane 550 kg - 700 kg
