Video measuring system Recto Verso series

geometrycoordinateparts

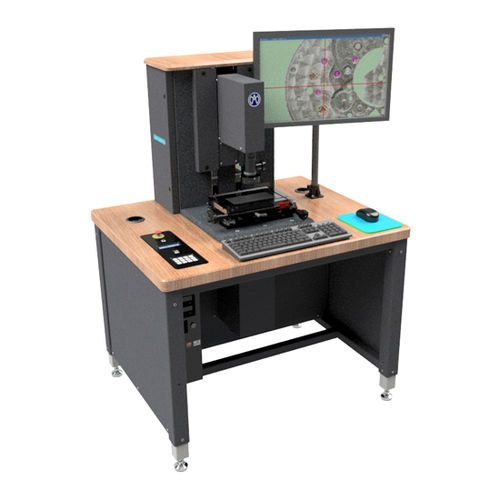

Recto Verso 150 Video measuring system This device is used to control simultaneously the two opposite faces of a product. The system guarantees a single reference for both top and bottom views, so you can control your products without support by defining your measurement references on the opposite side to those of the control. A video system equipped with two zoom-optics with color cameras allows you to control by comparing the profile of your part (video image) with a digitized drawing in DXF format. This workbench version integrates all controls on a front panel for optimum ergonomics. Moreover, the legs are adjustable in height from a sitting position of the operator to a standing position. N°: MA 185-327-01 Specifications: • - Granit base. • - Manual X-Y table MA 145-15, range 150 x 70 mm. Heidenhain measuring scales. Mechanical precision 0.003mm / 100mm. • - Motorized granit precision column. upper column range 180mm. lower column range 75mm. Mechanical precision 0.010mm / 100mm. • - 12X zoom-optic with 8 indexes. • - 24" screen. • - 1.3 Mpx USB 3.0 color camera. • - LED illuminators. • - Computer with monitor. • - Measuring and comparison software. • - Glass chromium deposit calibration ruler.
