Asynchronous motor D5T series
AC690 Vcast iron

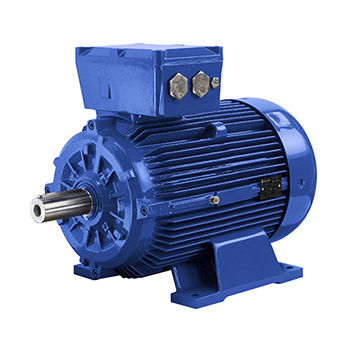

Asynchronous motor - D5T series - Marelli Motori S.p.A. - AC / 690 V / cast iron
Asynchronous motor - D5T series - Marelli Motori S.p.A. - AC / 690 V / cast iron
Add to favorites
Compare this product

Characteristics

Type
asynchronous, AC
Voltage
690 V
Configuration
cast iron
Protection class
flameproof, ATEX, for hazardous areas, IP55, IP56, IP65
Number of poles
4-pole, 8-pole, 6-pole, 2-pole
Cooling mechanism
air-cooled
Applications
for the oil and gas industry, for pump, blower, mill duty, for heat exchangers, for air compressors, for cranes, for conveyors
Other characteristics
low-voltage
Power

158 kW, 192 kW, 240 kW
(214.82 hp, 261.05 hp, 326.31 hp)

Description

Certificate Motors are certified by CESI. Ex d according to IEC/EN 60079-15 and ATEX directive 94/9/EC. Housing Frame is made in cast iron. (EN 1561-GJL-200 or better) Shield Made in cast-iron (EN 1561 – GJL 200) Shaft General data Made in carbon steel (EN 10083 – 2 C45) Shaft design Cylindrical shaft with key. Main terminal box Mounted on top. Made in cast iron. (EN 1561 – GJL 200) Fan Frame 160 ± 280 315 Pole - - 2 ± 6 8 Material Thermoplastic reinforced with glass fibres Metallic
