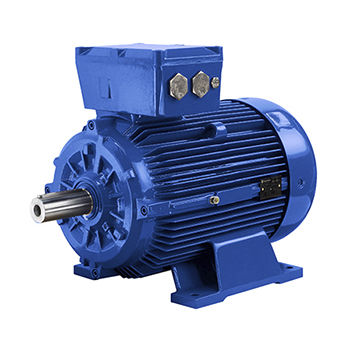

AC motor D5U series
asynchronous690 Vflameproof

AC motor
AC motor
Add to favorites
Compare this product


Characteristics

AC/DC
AC
Type
asynchronous
Voltage
690 V
Protection class
flameproof, ATEX, for hazardous areas, IP55, IP56, IP65
Configuration
cast iron
Number of poles
4-pole, 8-pole, 6-pole, 2-pole
Cooling mechanism
air-cooled
Applications
for the oil and gas industry, for pumps, blower, mill duty, for heat exchangers, for air compressors, for crane, for conveyors
Other characteristics
low-voltage
Power

158 kW, 192 kW, 240 kW
(214.82 hp, 261.047 hp, 326.309 hp)

Description

Certificate Motors are certified by CESI. Ex d according to IEC/EN 60079-15 and ATEX directive 94/9/EC. Housing Frame is made in cast iron. (EN 1561-GJL-200 or better) Shield Made in cast-iron (EN 1561 – GJL 200 or better) Shaft General data Made in carbon steel (EN 10083 – 2 C45 or better) Shaft design Cylindrical shaft with key. Main terminal box Mounted on top. Made in cast iron. (EN 1561 – GJL 200 or better) Fan Frame 160 ± 280 315 Pole - - 2 ± 6 8 Material Thermoplastic reinforced with glass fibres Metallic
