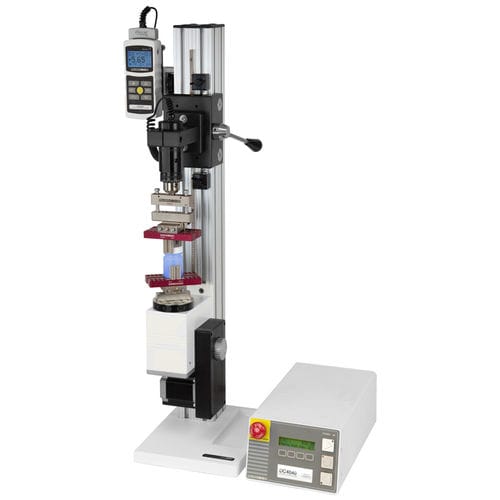

The TSTM-DC Advanced Motorized Torque Test Stand offers all the mechanical specifications of the TSTM motorized test stand, including standard 100 lbFin (11.5 Nm) torque capacity, versatile modular design, quick engagement and disengagement of samples, fixture mounting plate, stepper motor design that prevents speed variation with load, and more. A 200 lbFin (22 Nm) capacity upgrade is available as an option. The TSTM-DC offers expanded capabilities, including full PC control, programmable angle limits, programmable cycling, auto return, password protection, and other features.
Features
• Maximum load
Standard: 100 lbFin [11.5 Nm]
Optional: 200 lbFin [22.0 Nm]
• Speed range
Standard: 0.01 - 15 RPM [0.05 - 90°/s]
Optional: 0.04 - 60 RPM [0.2 - 360°/s] *
• Speed accuracy
±0.2% of setting, ±0% variation with load
• Digital display of angle
• Programmable angle limits
• Rotational travel accuracy: ±0.7° / 0.02 rev.
• Rotational travel repeatability: 0.1° / 0.01 rev.
• Rotational travel resolution: 0.1° / 0.01 rev.
• Throat: 4.10" [104 mm]
• Manual adjustment: 12° / adjustment knob rev
• Angle dial with 2° resolution
• Maximum slider travel: 15.5" [394 mm]
• Slider travel rate: 1.047" [26.6 mm] / lever rev
• Universal power supply: 80-250 VAC
• CE mark
• Computer Control
