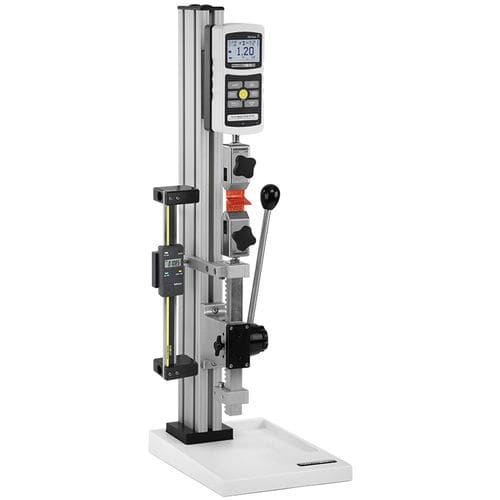

Tension test bench TSA750, TSA750H

compressionmanualfor materials

The lever operated Force Measurement Test Stand Model TSA750 is a perfect solution for quick-action pull testing and compression testing of up to 750 lb of tensile or compressive force. Made of rugged, machined aluminum components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The test stand includes adjustable travel stops and a frictional low force brake. Available in vertical and horizontal orientations. Features •Maximum force: 750 lbF [3.75 kN] •Maximum travel, with stops: 3.75" [95 mm] •Maximum travel, without stops: 6" [152 mm] •Travel rate: 3" [76.2 mm]/lever revolution •Compatible with all Mark-10 force gauges, accessories and grips •Loading lever can be positioned in 30° increments for ease of operation •Threaded holes for bench mounting •Adjustable travel stops •Precision ground rack and pinion mechanism •Adjustable wear plates for smooth, precise motion •Optional digital travel display •Friction brake
