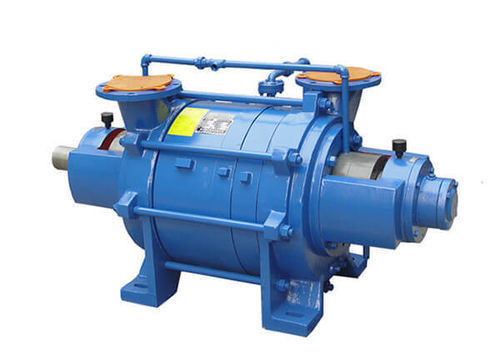

Liquid ring compressor MVLR-YS

not specifiedfor chemical applicationsindustrial

The Marpa Vacuum MVLR-YS series are one- and two-stage liquid ring compressors. An eccentrically mounted impeller rotates inside a housing that is partially filled with operating fluid. The impeller blades are immersed in the fluid and rotate to exert centrifugal force, forming what is called a liquid ring inside the casing. The eccentric rotation of the impeller varies the fluid volume. Thanks to their efficient structure, these products save large amounts of energy and are extremely low maintenance. They are generally used to pump gases containing water vapour and dust. The materials used to build these pumps can be customised to suit your application, from standard carbon steel to grade-316 stainless steel. Thanks to the choice of materials, the MVLR-YS series can also be used to suction corrosive gases or work with corrosive liquids. The double external mechanical seals guarantee adequate sealing. The MVLR-YS series has a built-in flexible exhaust valve that ensures a discharge pressure between 1 and 3 bar for single-stage compressors and between 3 and 6 bar for two-stage compressors. A tailor-made manual or automatic system, including electrical control system, gas-liquid separator, heat exchanger, condenser, etc., is also available. Flow: 90 up to 2,100 m³/h Applications: This product is designed for a multitude of uses, including: - Paper industry - Chemical industry - Light industry - Pharmaceutical industry - Power generating industries Technical specifications / Features: - One- and two-stage liquid ring compressors - Eccentrically mounted impeller inside a partially fluid-filled housing - Impeller blades immersed in fluid, forming a liquid ring - Variable fluid volume due to eccentric rotation - Energy efficient and low maintenance - Suitable for gases with water vapour and dust - Customisable materials: carbon steel to grade-316 stainless steel - Can handle corrosive gases and liquids - Double external mechanical seals for sealing - Discharge pressure: 1–3 bar (single-stage), 3–6 bar (two-stage) - Optional manual/automatic system: electrical control, gas-liquid separator, heat exchanger, condenser - Flow rate: 90–2,100 m³/h
