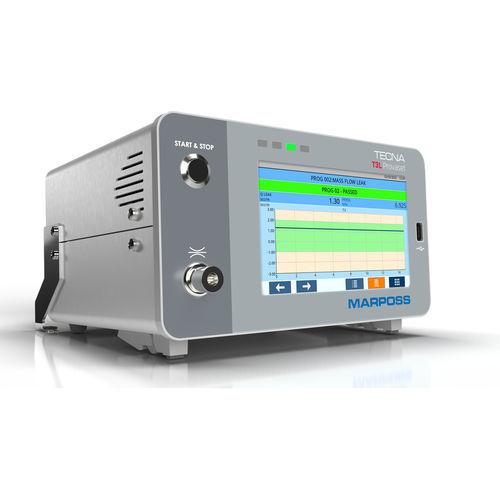

Vacuum leak tester T3LMF

pressuredigitalelectro-pneumatic

The part can be filled either through a continuous flow or a pre-filled volume for maximum performance. TESTS IN POSITIVE AND NEGATIVE PRESSURE T3LMF models perform tests in positive and negative pressure, managing an external vacuum source. The models with bidirectional mass flow sensor will be accompanied by two calibration reports or certificates. Provaset T3LMF is an electro-pneumatic instrument, designed for mass flow leak tests on very large volumes components. The most suitable applications concern big size parts such as: electric car battery packs and assemblies, cooling channels, tanks ... PERFORMANCE Provaset T3LMF is suitable for use in many industrial segments with special focus on e-mobility and battery, on testing benches, production lines or fully automatic systems. CONNECTIVITY The touch interface, with colour display and real-time view of testing, make programming and use simple and immediate. The control of external automations, the interface with barcode, Qrcode readers and printers and the possibility to record the tests on USB memories or via Ethernet make it a complete and suitable instrument for the most modern production methods. Small leaks on large volumes Tests in positive and negative pressure, from vacuum to 6 bar Flow measurement from ± 50 cm3/min up to ± 300 cm3/min Resolution 0.01 cm³/min 300 test programs 300 test sequences Digital I/O interfaces USB, RS232/RS485 serial lines for PC, Profinet, Ethernet
