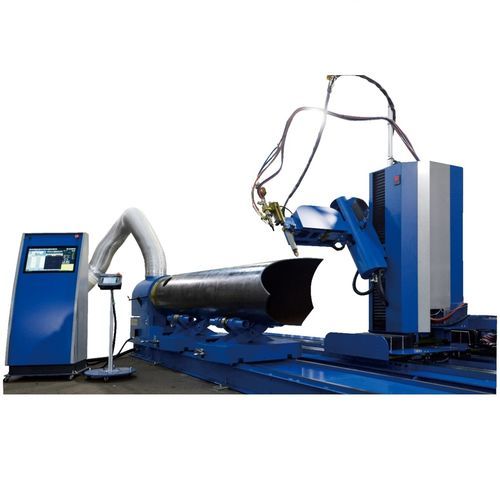

Metal pipe cutting machine MA Series

laserplasmaoxy-fuel

CNC automatic pipe cutting machine “PIPE COASTER” not only cut pipes correlatively but also simplify complicated work such as marking by sharing database, and has gotten great evaluation by users from all over the world. Applying the experience and the technologies for a few decades into latest computer system, PIPE COASTER is highly user-friendly to everyone. Software’s such as 3D direct linking are the futuristic systems that simplified complicated work. HID series has various models that cover pipe diameters from 34 to 3,000 mm, suitable for various fields of piping applications. • Interactive cutting software (PIPE STUDIO) : Standard • Interactive operation panel / Remote control panel : Standard • Windows network : Standard • Torch travel length (mm) : 1000 / 3000 / 6000 / 9000 / 12000 / 15000 / 18000 • Pipe trolley numbers : Torch rail 1000 to 3000 mm x2sets / 6000 to 9000 mm x 3sets / 12000 mm or more x5sets • Self-centering pipe chuck : 400MA, 650MA, 1000MA 4 or 5 jaws / 1350MA, 1500MA 3jaws • Laser sensing system : Standard • Plasma cutting machine : Standard • Oxy/fuel cutting : Option • Manual pre-heating unit : Option • Auto pre-heating unit : Option • Auto pre-heating system : Option • Motorized clamping system (chuck) : Option • Motorized traveling system (pipe trolley) : Option • Touch sensor (side) : Option • Auto marking system (powder) : Option • Auto marking system (inkjet) : Option • Cutting system for rear side of chuck : Option • Loading-unloading system with chuck up/down function : Option • Square rotator : Option • Fume collector : Option
