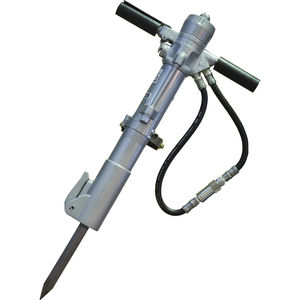

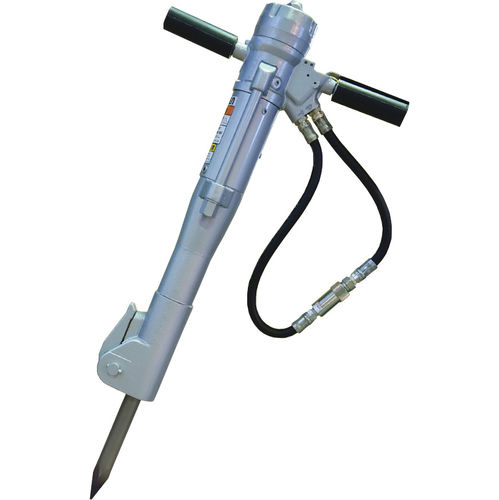

Hydraulic breaker BH23K

demolitionfor constructionvertical

FEATURES ･Most powerful in this class! ･Designed with Anti-Bouncing feature! New Anti-Bouncing feature makes your operation more comfortable. ･Suitable for work in cold weather! SPECIFICATIONS Dimension (mm) - BH23K: 690×420 BH23K28A: 702×420 Weight (kg) - BH23K: 24.5 (Without tool) BH23K28A: 24.8 (Without tool) Working Pressure (MPa) - 8～11 Max Pressure (MPa) - 20.6 Oil Flow (ℓ/min) - 20.5 Blow Per Minute - 1000 Shank Size (mm) - BH23K: Hex. 1″×4-1/4″ (25 x 108mm) BH23K28A: Hex. 1-1/8″ x 6″ (28 x 153mm) Coupling - 3/8″ Couplers Allowable Back Pressure (MPa) - 2.5 Extension Hose (m) - 3/8″×10(when used with unit) Hydraulic Oil - ISO VG32 (Standard) , ISO VG46 or equivalent Anti-Bouncing - Reduce bouncing makes operation easily.
