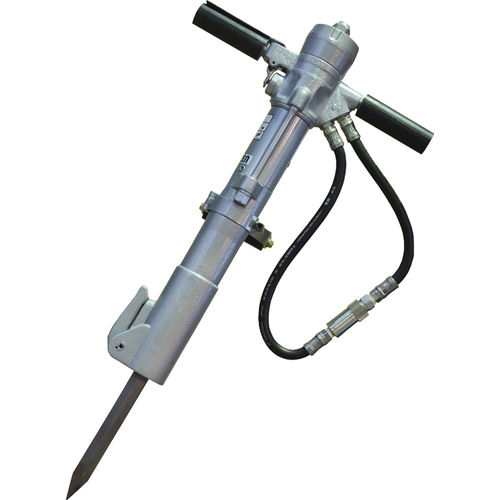

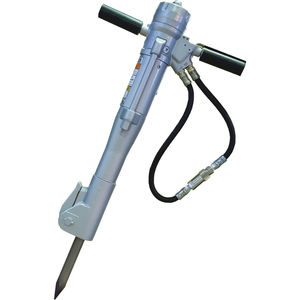

Hydraulic breaker BH18Kdemolitionfor constructionvertical
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Applications
- demolition, for construction
- Type
- vertical
- Other characteristics
- hand-held
Description
FEATURES
･Designed with Anti-Bouncing feature!
New Anti-Bouncing feature makes your operation more comfortable.
･Excellent high power!
Suitable for work in cold weather.
SPECIFICATIONS
Dimension (mm) - 622×412×112
Weight (kg) - 18 (Without tool)
Working Pressure (MPa) - 8～11
Max Pressure (MPa) - 21.4
Oil Flow (ℓ/min) - 18～22
Blow Per Minute - 1700
Shank Size - Hex. 1″ x 4-1/4″ (25 x 108mm)
Coupling - 3/8″ Couplers
Allowable Back Pressure (MPa) - 2.5
Extension Hose (m) - 3/8″×10(when used with unit)
Hydraulic Oil - ISO VG32 (Standard), ISO VG46 or equivalent
Vibration - 3 axis：9.4㎨( JIS B 7762-5)
