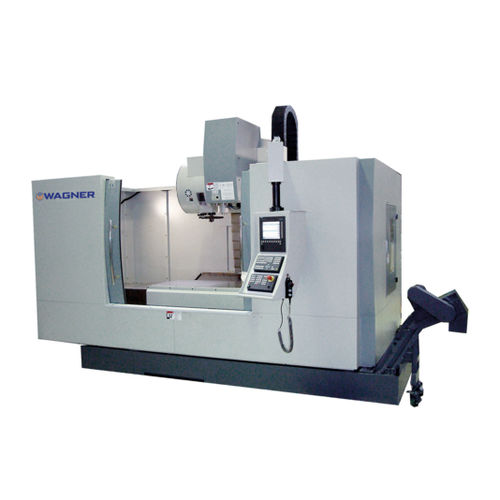

Vertical CNC machining center WMC series

3-axiscolumn typeSK40

1,100 mm, 1,200 mm, 1,400 mm, 1,600 mm
(43 in, 47 in, 55 in, 63 in)

650 mm, 700 mm, 800 mm
(26 in, 28 in, 31 in)

600 mm, 700 mm
(24 in, 28 in)

Min.: 6,000 rpm
(37,699 rad.min-1)

Max.: 30,000 rpm
(188,496 rad.min-1)

Min.: 1 mm/min
(0 in/s)

Max.: 20,000 mm/min
(13 in/s)

Min.: 1 mm/min
(0 in/s)

Max.: 20,000 mm/min
(13 in/s)

Min.: 1 mm/min
(0 in/s)

Max.: 15,000 mm/min
(10 in/s)

1,000 kg, 1,300 kg, 2,000 kg
(2,205 lb, 2,866 lb, 4,409 lb)

7 kg, 8 kg, 15 kg
(15.4 lb, 17.6 lb, 33.1 lb)

0.005 mm
(0 in)

2 s

8,000 kg, 8,500 kg, 10,000 kg, 15,000 kg
(17,636.98 lb, 18,739.29 lb, 22,046.23 lb, 33,069.34 lb)

3,180 mm, 3,330 mm, 3,730 mm, 4,970 mm
(125.2 in, 131.1 in, 146.9 in, 195.7 in)

2,680 mm, 2,750 mm, 3,325 mm
(105.5 in, 108.3 in, 130.9 in)

3,100 mm, 3,390 mm
(122 in, 133.5 in)
