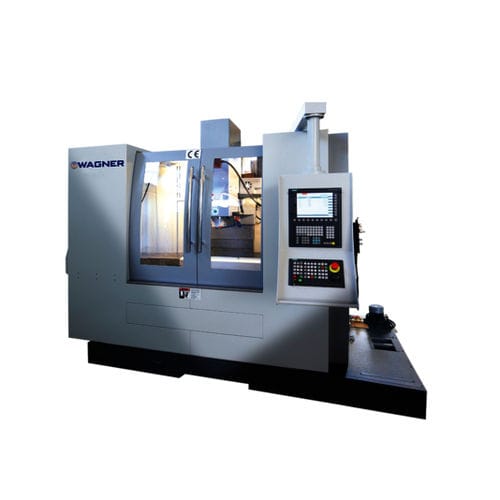

Vertical CNC machining center WME series
3-axiscolumn typeSK40

vertical CNC machining center
vertical CNC machining center
vertical CNC machining center
vertical CNC machining center
vertical CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
column type
Spindle mount
SK40
Number of tool stations
24 tools
Applications
for automatic tool changers
X travel

200 mm, 1,300 mm, 1,600 mm, 2,500 mm, 3,000 mm
(8 in, 51 in, 63 in, 98 in, 118 in)

Y travel

500 mm, 800 mm
(20 in, 31 in)

Z travel

570 mm, 630 mm
(22 in, 25 in)

Rotational speed

Min.: 50 rpm
(314 rad.min-1)

Max.: 8,000 rpm
(50,265 rad.min-1)

Work feed X-axis

Min.: 0 mm/min
(0 in/s)

Max.: 6,000 mm/min
(4 in/s)

Work feed Y-axis

Min.: 0 mm/min
(0 in/s)

Max.: 6,000 mm/min
(4 in/s)

Work feed Z-axis

Min.: 0 mm/min
(0 in/s)

Max.: 6,000 mm/min
(4 in/s)

Table load capacity

700 kg, 1,000 kg
(1,543 lb, 2,205 lb)

Tool weight (max)

7 kg, 15 kg
(15.4 lb, 33.1 lb)

Positioning accuracy

0.01 mm
(0 in)

Repeatability

0.005 mm
(0 in)

Weight

3,900 kg, 6,600 kg, 6,800 kg, 8,400 kg, 8,700 kg
(8,598.03 lb, 14,550.51 lb, 14,991.43 lb, 18,518.83 lb, 19,180.22 lb)

Overall length

2,388 mm, 4,600 mm
(94 in, 181.1 in)

Overall width

2,055 mm, 3,000 mm
(80.9 in, 118.1 in)

Overall height

2,900 mm
(114.2 in)

Description

- Machining center with price management advantages - Cross bed construction in C-shape - High quality double arm tool changer
