Vacuum conveyor

Product overview
The vacuum belt conveyor fixes products to the conveying belt by creating a vacuum inside the conveyor frame. This enables positionally secure transport without grippers or pallets and supports rapid acceleration, vertical ascent, overhead or lateral suspended transport. The system is suitable for continuous inline handling tasks such as coating, scanning, labelling or laser processing.

Benefits

• Accurate position transport without grippers or pallets
• Secure handling of lightweight, large-area products under high acceleration – no tipping or lifting
• Supports overhead, vertical and lateral suspended transport
• Allows inline processing and inspection while the product is moving

Basic structure & function

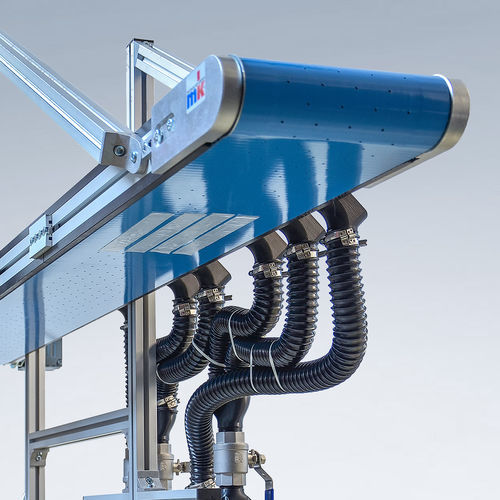

The conveyor frame is fitted with suction ports for an external vacuum source (e.g. industrial vacuum cleaner or side channel blower). Vacuum is generated inside the frame and transmitted to the product through holes in the perforated slide bed and the belt, holding the product to the belt during transport.

Variants & integration
mk offers belt conveyors and timing belt conveyors configured as vacuum belts. Only the conveyor frame and the belt are modified to enable the vacuum function. Timing belt conveyors provide a positive-drive, no-slip transport useful for synchronisation with vision systems. mk can supply individual components (belt, suction line, pump) or deliver a complete vacuum belt conveyor ready for integration.

Application examples

• Increasing production output with continuous vacuum conveying
• Secure transport of thin ceramic foils using vacuum hold-down
• Alignment and conveying of aluminium plates prior to downstream processing

Technical specifications

• Function: fixation of products to belt by vacuum via perforated slide bed and belt
• Transport orientations: horizontal, ascending/vertical, overhead, lateral suspended
• Suitable for: lightweight, large-area products at high accelerations or speeds
• Industries: packaging, consumer goods, paper, battery production
• Components: modified conveyor frame with suction fittings, perforated slide bed, suitable belt
• Vacuum source: external pump (industrial vacuum or side channel blower) — suction fittings provided
• Conveyor types: belt conveyors and timing belt conveyors (positive drive, no slip)
• Integration: supply of components or complete system ready for installation
• Processing capability: inline coating, scanning, labelling, laser processing while conveying
