toothed belt conveyor / belt / workpiece / for boxes
ZRF-P 2010



  • Technology:


  • Product transported:

    for pallets, for boxes, workpiece

  • Other characteristics:

    horizontal, compact, sturdy, toothed belt

  • Maximum load:

    250 kg (551.156 lb)

  • Speed:

    60,000 mm/min (39.37 in/s)


Conveyor system with a timing belt for transporting workpiece carriers and rigid products.

- Precise
- Fast
- Sturdy

Features of the ZRF-P 2010

- Double line and multiple line conveyor for transporting workpiece carriers and rigid products.
- Ideally suited for cycling operation, up to 250 kg
- Timing belt recirculates inside the profiles to produce a compact design
- Various belt coatings for optimal gripping of the workpiece
- Wide range of different drive options

Product Description

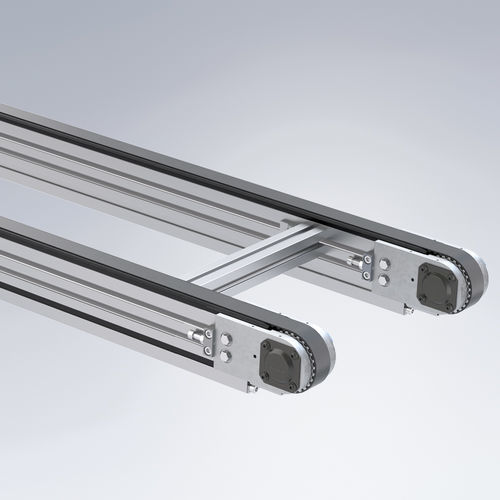

The ZRF-P 2010 timing belt conveyor is ideally suited for use as a dual line system for transporting heavy workpiece carriers and product with a rigid structure. The positive connection between the drive pulley and the timing belt ensures that the two conveyor lines are synchronised, making the system ideally suited for cycling operation. Various coatings on the surface of the timing belt ensure optimal gripping of the workpiece for your specific application. Combined with the wide range of different drive options, this makes the system the perfect basis for constructing complex interlinking and automation systems.
