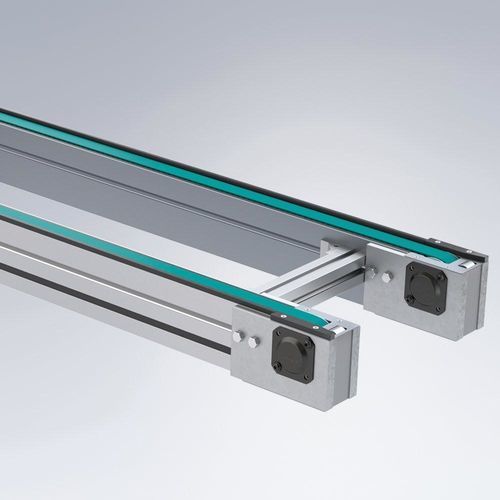

Belt conveyor ZRF-P 2045

inclinedstraighttransport

Product
Toothed-belt conveying system for the indexed transport of workpiece carriers and dimensionally stable, lightweight goods.

• Precise
• Flexible
• Modular

Product description
The toothed-belt conveyor ZRF-P 2045 is part of the workpiece carrier system Versamove standard and is particularly suitable as a double-strand system for the transport of workpiece carriers and dimensionally stable conveyed goods at lower loads, high speeds and high accelerations.
Due to the positive engagement between the drive toothed pulley and the toothed belt, synchronous movement of both conveyor strands is ensured. The return of the toothed belt inside the profile minimizes accident risk and allows a compact design.
System grooves of 10 mm on both sides enable easy integration into existing installations as well as the attachment of stands, side guides, initiators or other accessories.

Advantages

• Double- or multi-strand conveyor for transport of workpiece carriers and dimensionally stable goods
• Conveyor for WT system Versamove standard
• Well suited for indexed operation
• High speed and acceleration
• Quieter operation compared with other conveyor types
• Low maintenance
• Optional antistatic version

Technical data
Conveyed goods: crate, workpiece carrier
Conveying path: straight & incline up to 20°
Conveyor length: custom from 600–6000 mm
Conveyor width: 255–655 mm
Conveying speed: up to 30 m/min
Typical total load: up to 200 kg, higher on request
Toothed belt width: 25 mm
Drive versions: AC, AF, BC, BF
Belt body profiles: mk 2262

Characteristics / technical specifications

• Conveyed goods: crate, workpiece carrier
• Conveying path: straight & incline up to 20°
• Conveyor length: custom from 600–6000 mm
• Conveyor width: 255–655 mm
• Conveying speed: up to 30 m/min
• Typical total load: up to 200 kg, higher on request
• Toothed belt width: 25 mm
• Drive versions: AC, AF, BC, BF
• Belt body profiles: mk 2262
