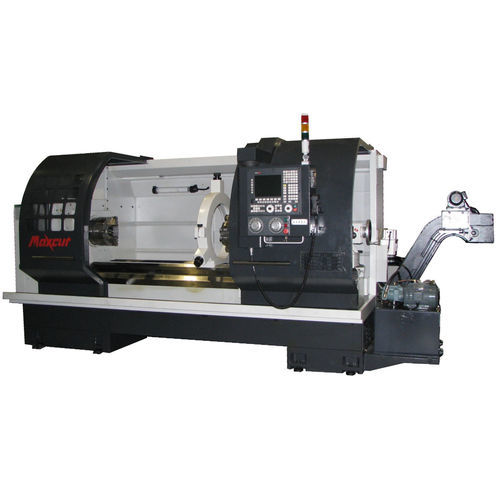

CNC lathe MAXCUT TNC4-2680
horizontal2-axisflatbed

CNC lathe - MAXCUT TNC4-2680 - Masteel America Corp. - horizontal / 2-axis / flatbed
CNC lathe - MAXCUT TNC4-2680 - Masteel America Corp. - horizontal / 2-axis / flatbed
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Structure
flatbed
Diameter

670 mm
(26.38 in)

Spindle speed

Min.: 11 rpm
(69.115 rad.min-1)

Max.: 1,600 rpm
(10,053.096 rad.min-1)

Maximum cutting length

670 mm
(26 in)

Bar capacity

4 in

Axe X

410 mm
(16 in)

Axe Z

1,800 mm
(71 in)

Rapids on X

0 mm/min, 5,000 mm/min
(0 in/s, 3 in/s)

Rapids on Z

0 mm/min, 5,000 mm/min
(0 in/s, 3 in/s)

Nominal power

15 kW
(20.4 hp)

Overall lenght

5,020 mm
(198 in)

Overall width

1,850 mm
(73 in)

Overall height

2,045 mm
(81 in)

Weight

12,500 lb
(5,670 kg)

Description

Fagor 8055i-A TC controller, 11” LCD Double chuck front/rear mounting- 16” SK-16 3-Jaw chuck (160mm bore) A2-11 Spindle 4” (104mm) spindle bore at 1600RPM 4 step Hyd. Shifting System for spindle Hyd. 8-Tool Turret (Taiwan) DC Servo Motor for X & Z Axes Coolant System 18" WIDTH BED 3V Bed Steady Rest 50-380mm Chip Conveyor Full enclosure with vision window Automatic Lubrication Work light SPECIFICATIONS Swing over cross slide - Mm (in) - 380 (15) Distance between centers - Mm (in) - 2000 (80) Steady rest - Mm (in) - 50-380 (1.97-14.96) Width of bed - Mm (in) - 460 (18) MOTORS - - X-axis servo motor output - KW (HP) - 1.5 (2.0) Z-axis servo motor output - KW (HP) - 2.3 (3.0) Coolant pump motor - HP - 1/4
