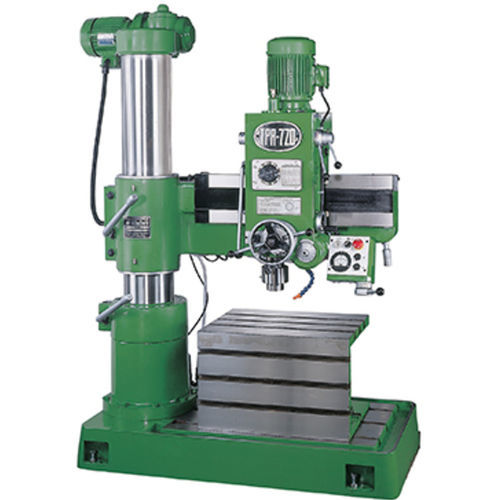

CNC drilling machine TPR-720A

for steelradial

Dai. Of column - Distance from column surface spindle center, Max - 750 Distance from column surface to spindle center, Min - Travel of spindle head - 530 Distance from base surface to spindle end, Max - 1060 Distance from base surface to spindle, Min - 260 Elevating height of Arm - 580 Effective area of box table - 600x445x380 Dimension of base - 1260x640x160 Taper hole spindle - MT#4 Stroke of spindle - 220 R.P.M of spindle (rmp x steps) - 88,154,282,455,796,1500x6 Feed of spindle (rev x steps) - 0.05,0.09,0.15x3 Main motor (HP) - 2HP Elevating motor (HP) - 1HP Clamping motor (HP) - Coolant equipment (HP) - 1/8HP Machine height from floor (max) - 2170 Base + column height - 1850 Net weight (approx.) Kgs - 1120 Shipping weight (approx) kgs - 1250 Shipping dimensions (lxwxh) - 1680x826x2160
