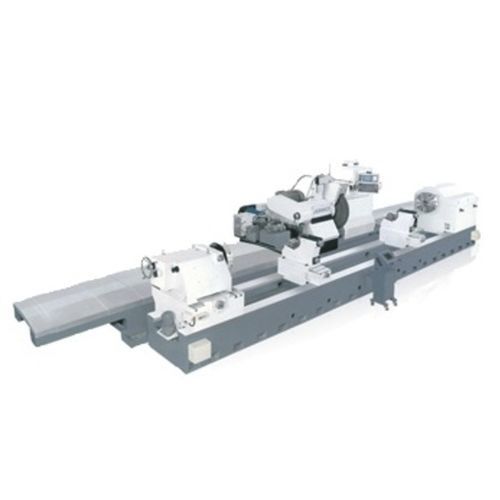

Cylindrical grinding machine H130CNCheavy-duty2-axis
Add to favorites
Compare this product
Characteristics
- Type
- cylindrical
- Control type
- CNC
- Other characteristics
- heavy-duty, 2-axis
- Spindle speed
Min.: 300 rpm
(1,885 rad.min-1)Max.: 1,200 rpm
(7,540 rad.min-1)- Distance between centers
4 m, 5 m, 6 m, 7 m, 8 m
(13'01" , 16'04" , 19'08" , 22'11" , 26'02" )- Y travel
200 mm
(8 in)
Description
Working Capacity - Max. swing over table - mm - Ø1300
Max. weight with supports - Kg - 15000
Max. O.D ground - mm - Ø1300
Rang of grinding dia. - mm - 80~1300
Max. dia of crown - mm - By program
Wheelhead & Carriage (x axis) -
Wheel size (O.D. x width x Bore) - mm - Ø910xØ304.8x80
Type of lubricating system - - - Hydrostatic & dynamic system
Table (Z axis) -
Travel speed of table - mm/min - 25~6000mm/min
Type of lubricating system - - - Hydrostatic & dynamic system
Support -
Roll neck diameter range - mm - 90~400 (350-600 option)
Workhead & Tailstock - Rotation speed of work head - mm - 6~50
Size of center - - - PT#100
Moving speed of tailstock - mm/min - 2000
Stroke of quill - mm - 200mm
