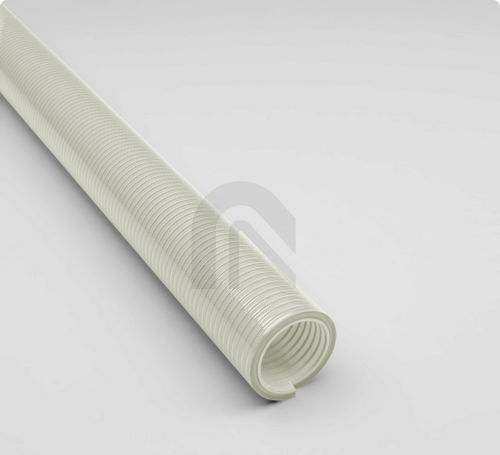

Foodstuff hose Master-SIL SD Food
stainless steelsiliconepolyester

foodstuff hose
foodstuff hose
Add to favorites
Compare this product


Characteristics

Use
foodstuff
Material
stainless steel, silicone, polyester
Applications
suction, transport, transfer, for the chemical industry, for the food industry, for the pharmaceutical industry
Other characteristics
flexible, chemical-resistant, with smooth inner surface, translucent, gas-tight, small bend radius, fabric-braided, multilayer, spiral wire
Inner diameter

Min.: 13 mm
(0.512 in)

Max.: 100 mm
(3.937 in)

Outer diameter

Min.: 23 mm
(0.906 in)

Max.: 112 mm
(4.409 in)

Pressure

Min.: 2.5 bar
(36.259 psi)

Max.: 11 bar
(159.542 psi)

Temperature

Min.: -60 °C
(-76 °F)

Max.: 200 °C
(392 °F)

Delivered length

5 m, 10 m, 15 m, 20 m
(16'04" , 32'09" , 49'02" , 65'07" )

Description

Silicone Pressure Hose, Food-grade Quality (FDA) Type of construction - single or multi-layer spiral hose made of vulcanized fabric strips Execution of the wall - made of specified material, coated, Coating made of platinum cross-linked silicone, multi-layered and braided, Wall thickness approx. 5.0 mm Specifications of the wall - Material complies with food regulations FDA 21 CFR § 177.2600 - 21 CFR § 178.2010, Material complies with the food regulations of BfR XXXIX, Material is USP Class VI certified Properties Specifications of the product - Manufacturing process according to GMP EC 2023/2006 Chemical Properties - odourless and tasteless, good resistance to chemicals Weight - heavy Pressure Resistance - very pressure resistant Other - high vacuum and good pressure resistance Delivery Information Delivery, type of production - Various nominal widths in standard lengths are available ex-production, individual nominal widths and lengths also ex-stock Application Areas Areas of application - Chemistry, Food & Pharma, Plastics Customizing Options optional item modification (on request) - other nominal widths, other colours, with customer-specific imprint
