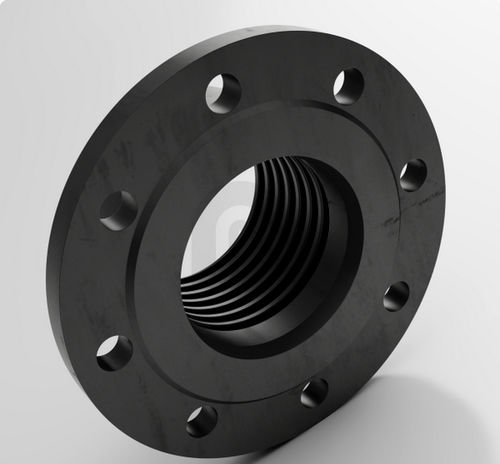

Pipe flange Combiflex PU

for hosesplasticthrough-hole

screw-on plastic flange for Master-PUR L, Master-PUR H, Master-PUR HX and Master-PUR Performance, for counterflanges according to DIN 2632 / DIN 2633 / DIN 2673 Description, addition to product name - screw-on plastic flange for Master-PUR L, Master-PUR H, Master-PUR HX and Master-PUR Performance, for counterflanges according to DIN 2632 / DIN 2633 / DIN 2673 Construction / Material Specification of the connection solution - Flange suitable for counter flange according to DIN 2632/2633, Welding neck according to DIN 2673, Hole pattern according to DIN 2501, Connection option without cross-section narrowing, Pressure rating PN 10 for DN 200 or larger, PN 10/16 for all other DNs Execution of the sprue / collar - made of highly abrasion-resistant material Material of the sprue / collar - Polyurethane Properties Chemical Properties - microbe-resistant Colour - black Other - reusable and replaceable, easy to assemble, Dissipation of electrostatic charge due to integrated earthing plate Operating Temperature Temperature Range - -40 to 90 °C short-term maximum temperature - peaks to +125° C Delivery Information Delivery, type of production - Various nominal widths are available ex production, individual nominal widths also ex stock Customizing Options optional item modification (on request) - in permanently mounted design for liquid-tight, tension-resistant connections, other nominal widths, other colours
