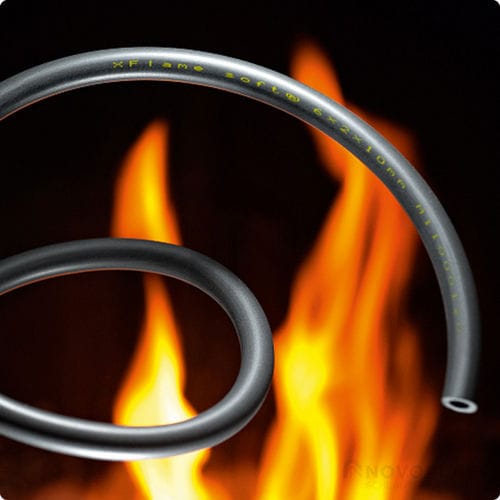

Compressed air hose XFlame soft®
for weldingabrasion-resistanthalogen-free

Compressed air hose - XFlame soft® - Masterflex SE - for welding / abrasion-resistant / halogen-free
Compressed air hose - XFlame soft® - Masterflex SE - for welding / abrasion-resistant / halogen-free
Compressed air hose - XFlame soft® - Masterflex SE - for welding / abrasion-resistant / halogen-free - image - 2
Add to favorites
Compare this product

Characteristics

Use
for compressed air
Applications
for welding
Other characteristics
abrasion-resistant, halogen-free, flameproof, self-extinguishing
Inner diameter

Min.: 2 mm
(0.079 in)

Max.: 11 mm
(0.433 in)

Outer diameter

Min.: 4 mm
(0.157 in)

Max.: 16 mm
(0.63 in)

Temperature

Min.: -40 °C
(-40 °F)

Max.: 90 °C
(194 °F)

Description

Flexible PU hose, 85 Shore hardness, self-extinguishing, flame retardant Execution of the wall - made of highly abrasion-resistant material, made of a material that is insensitive to stress corrosion cracking, made of a material with high impact strength, made of a material with dielectric properties, made of a material with elastic properties Specifications of the wall - Flame resistance tested according to UL 94 V2 - V0 Properties Chemical Properties - good resistance to oil, good UV resistance, halogen-free, hydrolysis resistant, microbe-resistant, plasticiser-free, good resistance to fats, free from paint wetting impairment substances (LABS) Mechanical Properties - small bending radius, Kink-resistant Physical Properties - flexible at low temperatures, good damping behaviour Application Areas Areas of application - Agriculture, Automotive, Plant & Mechanical Engineering, Robotics & Automation, Industry, Aerospace technology, Sea & rail transport, Surface Technology, Food & Pharma, Plastics, Conveying, lifting & feeding technology, Textile, Printing & Paper, Vehicle construction, Metal & Toolmaking Customizing Options optional item modification (on request) - other colours, printable, Multiple hose, Spiral version, Shaped hose, Rolls, cut-to-size sections
