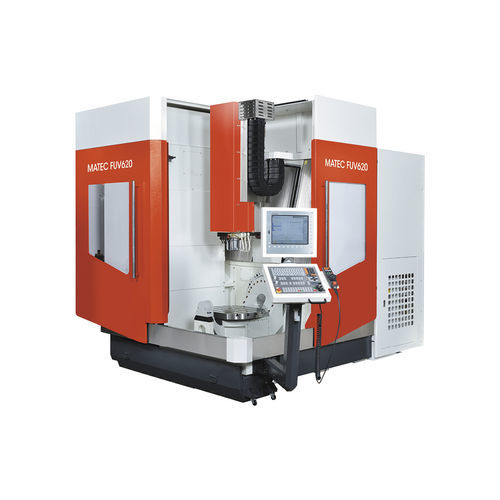

5-axis CNC machining center FUV series

universalHSK A-63SK40

The new 5-axis machining centres MATEC FUV 620 I 720 have been designed to produce intricate parts and shapes in 5 axes. The machine design provides for a high rigidity and concentration of accelerated mass resulting in an excellent dynamic conception. AC motors being state-of-the-art in high-dynamic machine tool building are incorporated into the rotation and swivel axes. The machine base consists of tightly ribbed „Meehanite“ cast iron. The whole structure stands out by its high thermostability allowing dynamic loading of the machine and guaranteeing low vibration run, optimum accessibility with a big working area and compact floor space requirement. Based on the machine design simultaneous 5-axis machining of workpieces as well as 5-sided machining are possible when using the integrated hydraulic axial brakes (axis clamping momentums up to 4,410 Nm). The diametres of the face plates of the work tables are Ø 650 mm resp. Ø 720 x 540 mm. The swivel bridge, incorporated into the counterbearing, and the perfectly integrated axis rotation points of the table, allow machining of workpieces up to a total weight of 500 kg. The rotation axis allows a full 360° turn. The swivel axis allows machining of intricate parts as the table can swivel up to -50° | +110°. Directly connected rotation encoders provide for a maximum contour accuracy. Workpiece Automation High-flexibility automation solutions. 6-axis robots with automatic gripper change open up entirely new process cycles for automated workpiece handling. Easy implementation of secondary and additional processes. Design based on workpiece size and weight as well as storage capacity.
