5-axis CNC machining center FUV series

verticalHSK-63HSK-100

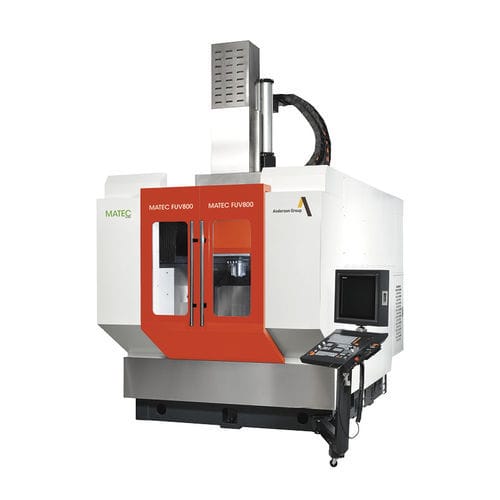

The model FUV800 I FUV800 B has been designed for an elaborate production of intricate parts and shapes in 5 axes. The gantry design provides for a high rigidity and concentration of accelerated mass resulting in an excellent dynamic conception. The machine base consists of tightly ribbed cast. Prior to mechanical processing, the whole column structure is being stress-relieved. The whole structure stands out by its high thermostability allowing precise simultaneous 5-axis machining of workpieces. The swivel bridge incorporated into the side walls and the perfectly integrated axis rotation points of the table allow machining of workpieces up to a total weight of 1,200 kg. The machine table has a diametre of 800 mm, allowing to process workpieces with a max. diametre of 900 mm and a height of 550 mm. The rotation axis allows a full 360° turn. The swivel axis has a swivel range of +120° I -120°. All axes are equipped with direct path measuring systems. Loading of workpieces can be done in a highly efficient way due to the max. distance of 720 mm between door edge and centre of the machine table. The machine can be equipped with max. 120 tools in HSK63 I SK40 and 60 tools in HSK100 I SK50. The standard version is equipped with 32 tools each.
