5-axis CNC machining center FUV series

verticaltraveling-columnbridge

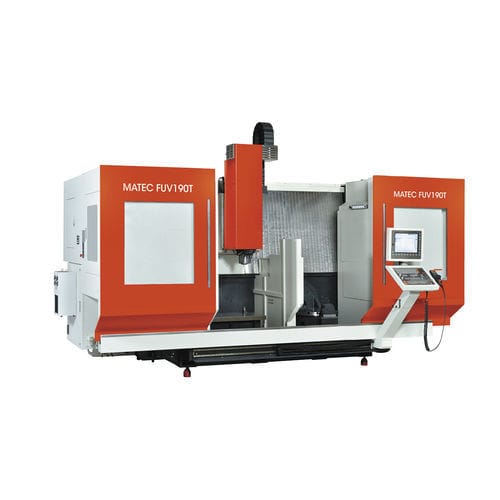

The FUV170T I 190T is a low-cost starter machine which allows 5-axis, pendulum and long bed machining. The machine base consists of tightly ribbed cast iron. The whole structure stands out by its high thermostability allowing dynamic loading of the machine and guaranteeing low vibration run, optimum accessibility with a big working area and compact floor space requirement. Based on the machine design simultaneous 5-axis machining of workpieces as well as 3-axis machining of long components are possible. The face plate of the swivel turntable has a diametre of Ø 650 mm and the rigid machine table has a clamping surface of 700 x 500 mm resp. 900 x 500 mm. The swivel bridge incorporated into the counterbearing allows machining of workpieces up to a total weight of 300 kg. A weight of 1,200 resp. 1,600 kg can be clamped on the rigid table. The rotation axis allows a full 360° turn. The swivel axis allows machining of intricate parts as the table can swivel up to -50° | +110°. Glass scales and direct rotation encoders in all axes provide for a maximum accuracy.
