Chamber furnace B-8
electricgasvacuum

chamber furnace
chamber furnace
chamber furnace
Add to favorites
Compare this product


Characteristics

Configuration
chamber
Heat source
electric, gas
Atmosphere
vacuum, inert gas
Other characteristics
graphite
Maximum temperature

1,650 °C, 1,700 °C, 3,000 °C
(3,002 °F, 3,092 °F, 5,432 °F)

Description

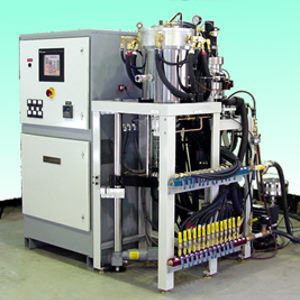

B-8 Bottom Loading Furnace Our small bottom loading furnace attracts customers in both lab environments and production facilities for a wide variety of applications. All of our furnaces are complete turn-key systems and can be customized to meet specific application needs. Several different hot zone materials and temperature ranges are available as well as various vacuum and gas system options. Our basic system includes a power supply with TC or pyrometer feedback for PID temperature control of the hot zone, a rough vacuum system and an inert gas system for controlling the chamber atmosphere, a water system for cooling and motorized lift system for loading and unloading. All sub-systems are integrated with interlocks for safe, reliable operation and are extensively tested before shipping. Specifications: Hot zone size: 8” diameter X 14” high (203 mm diameter. X 356 mm high) Materials & maximum temperatures: Ceramic, 1700°C max. Molybdenum, 1650°C max. Tungsten, 3000°C max. Graphite, 3000°C max. +/- 10°C temperature gradient across zone Electric lift for loading and unloading Includes rough vacuum and inert gas system Available with high vacuum systems, flammable gas systems and other options
